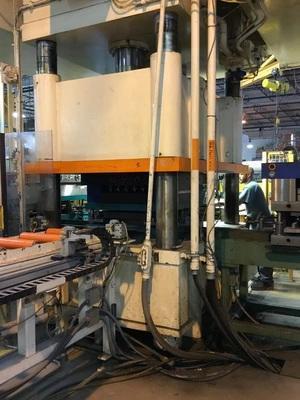

400 Ton PH Model HD2-4P Four Post Hydraulic Press

400 Ton PH Model HD2-4P Four Post Hydraulic Press

Brand
PH

Model
HD2-4P

Type
Presses, Hydraulic

Stock #
605452

Condition
Used

Year

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Tonnage	400 tons
Stroke	12 inches
Shut Height	21 inches
Bed W	81 inches
Bed L	60 inches

Equipped With

Capacity: 400 Ton
Stroke: 12”
Daylight Open: 33”
Shut Height: 21”
Bed Area: 81”LR x 60”FB
Distance Between Posts: 64”LR x 40”FB
Operating Speeds:
Rapid Advance: 340 IPM
Intermediate: 180 IPM
Pressing: 48 IPM
Rapid Return: 352 IPM
2-Point Suspension, Self Contained Single Action Down Acting

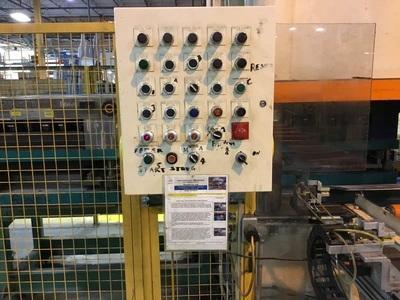

St. Lawrence Hydraulics & Electrical Control System
Platen Latches - Upper Platen equipped with automatically operated spring engaged, hydraulic disengaged latches to mechanically hold platen at any position of the work stroke, latches are interlocked electrically
Self Contained Press Mounted Hydraulics (Top Mounted)
800 Gallon Capacity / 2- 400 Gallon
125 HP O.D.P. / 1200 RPM / 230-460 Volt
Vickers Fixed Vane Pumps #4525V38A5 / 38 GPM

O.A. Dimensions: 70”LR x 89”FB x 170”H
Approximate Weight: 63,000 Lbs
Floor Standing (no pit required)
