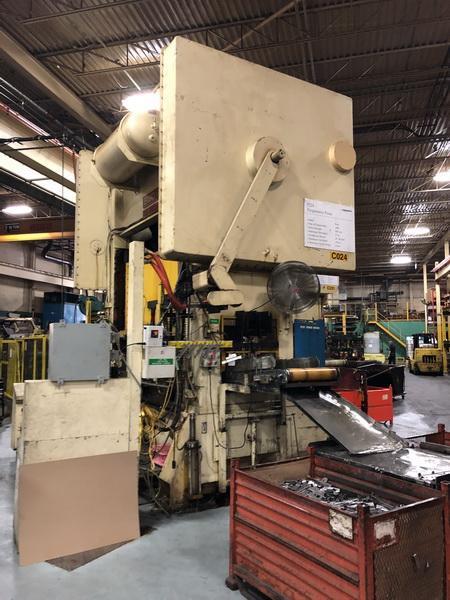

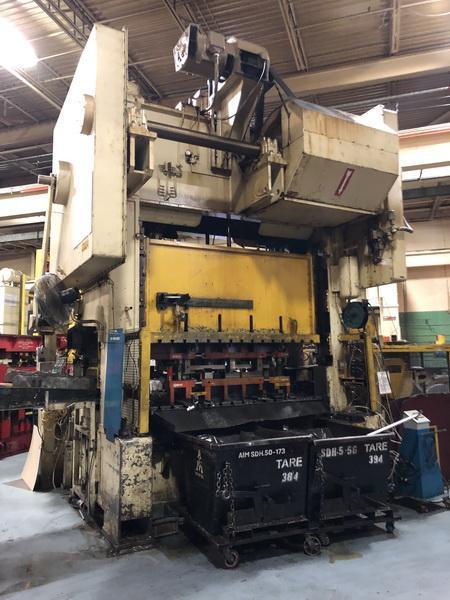

400 Ton Blow Progressive Press

Brand
BLOW

Model
SC2-400-96-48

Stock #
102165

Condition
Used

Year

Tonnage 400 tons
Stroke 10 inches
Shut Height 28 inches
SPM 40
Vari Speed (Yes/No) yes
Bed W 96 inches
Bed L 48 inches

Equipped With

Bed Size: 96" x 48"
Max Shut Height: 28”
Set Die Build Height: 27”
Slide Adjustment: 10”
Slide Stroke: 10”
SPM (min): 20
SPM (max): 40
Method of Scrap Removal: Shaker Trays

BOLSTER
Length (L to R): 96”
Width (F to B): 48”
Die Build Passline (from top of bolster): 12”
Top of Bolster to Floor Height (operator stand): 47.5” (33.5”)
Bolster Thickness: 7.5

RAM
Length (L to R): 96”
Width (F to B): 48”
Ram Thickness: 4.5”

Left Hand Window: 30” x 30”
Right Hand Window: 30” x 30”
T-Bolt Size: 1”
