3200mm Fusion Bond Epoxy 3PE Complete Coating Line

Brand
Not Specified

Model
Not Specified

Stock #
605516

Condition
Used

Year

Pipe Dia 3200 millimeters
CNC Control no
Dimensions 13 meter

Equipped With

Technical Parameters:

Pipe OD range:820mm-3200mm

Pipe Length Range: 6-13meters

Speed Range: 350-450m²/hour

Complete Line with the Following Components:

- Entry Powered Conveyor Section
Quantity: 54 Sections
Max. Pipe Diameter: Φ3200mm
Max. Pipe Length: 13 meters

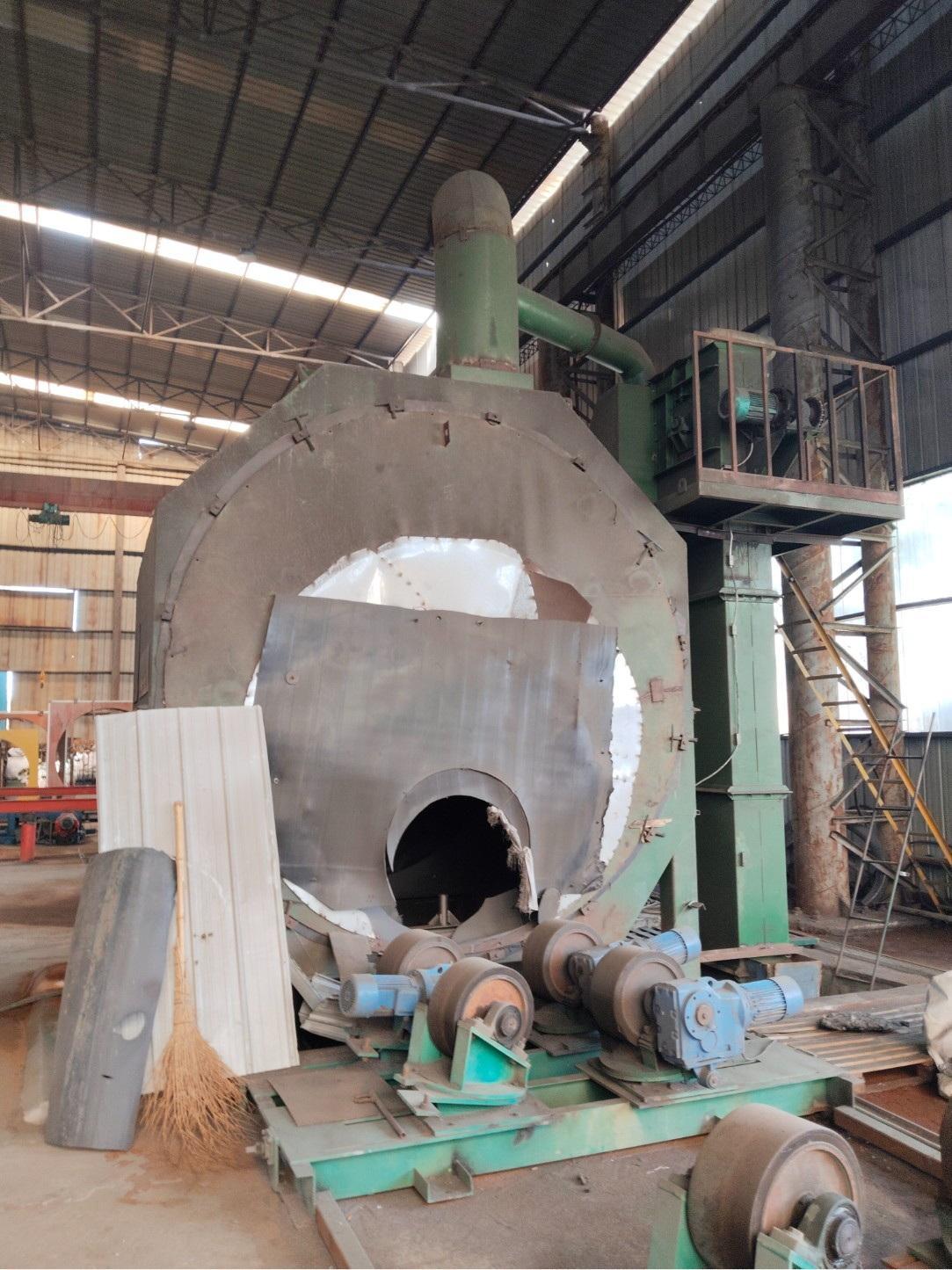

- Shot Blasting System
Capacity: Speed Range: 350-450m²/hour
Total Motor Power: 165KW

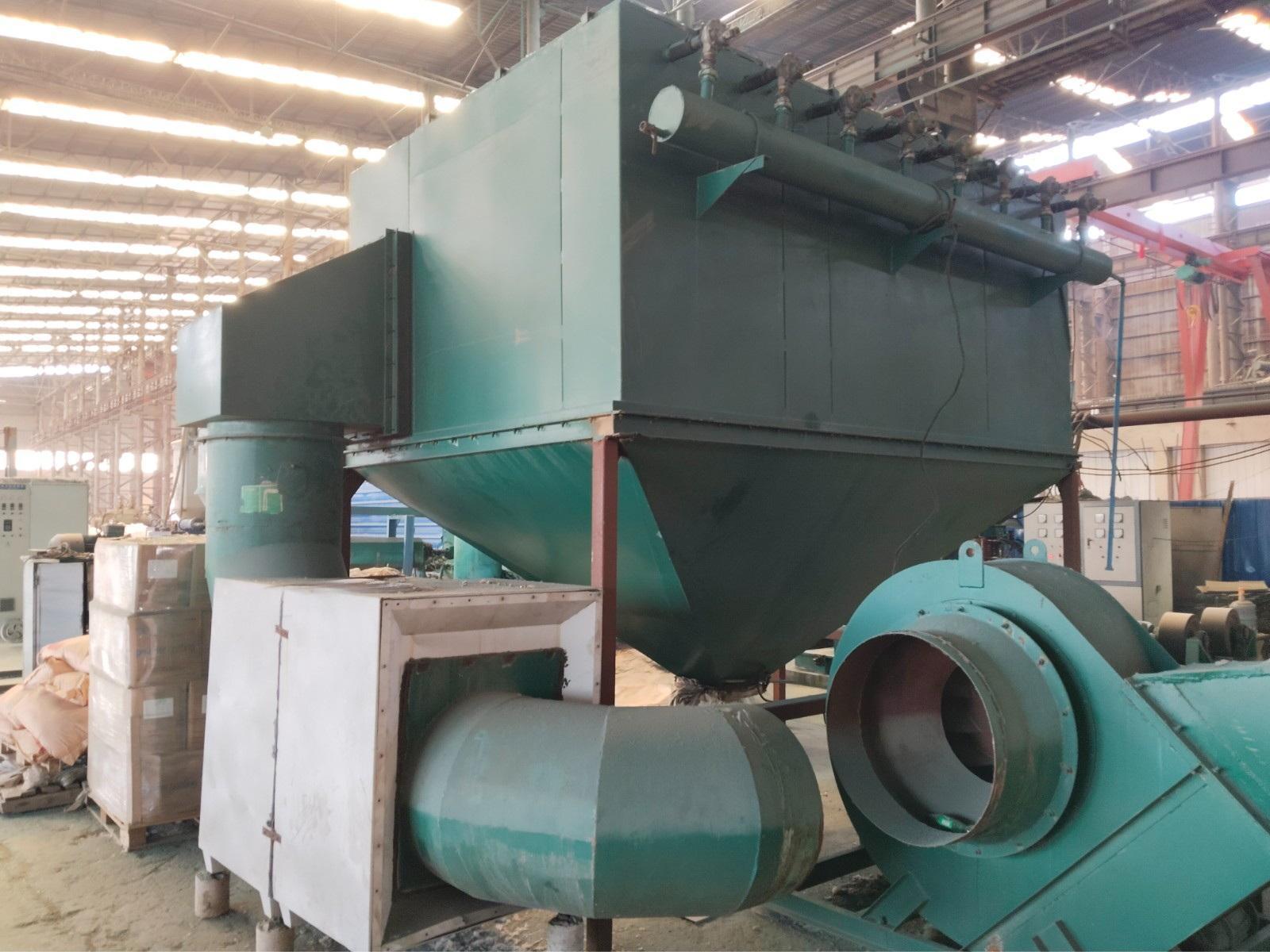

Dust Removal Filtration System
32-Cartridge Filter Design

- Medium Frequency Heating System
2 Heating Coil Design
Operating Power: KGPS-1000KW/1KHZ


- FBE Electrostatic Spray Paint  System
5 Gun Controller Design


- Extruder
Capacity of 2000 kg/h & 300 kg/h
Operating Power: 700 KW & 75 KW

- Powder Recovery System
Cyclone + Cartridge Filter
Airflow: 10000 m³/h
Operating Power: 30 KW

- Pipe End Grinding Machine

- Control Cabinet & Operator Console

Complete Line with Electrics, Controls

Installed
