Product Pipe Specification:
Pipe O.D.: Φ1020 - Φ2540 mm
Pipe wall thickness: 6-25mm
Pipe weight: Max. 19T
Pipe length: 8 - 12m
Machine Specification
Max: 2000T
Sealing type: End face sealing
Testing pressure: Max. 12Mpa
Hydraulic working pressure: 24MPa
Pressure maintaining time: 10-15s
Fluctuation range when stabling: 0 - 0.5Mpa
Tensioning beam type: Rectangle section four-stretching beam
Main cylinder: 2 sets of single direction cylinder φ430/φ300x500, 4 sets of double direction cylinder φ430/φ300x500
Equipment List:

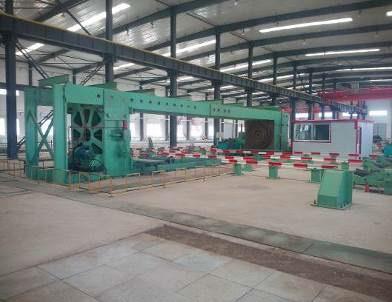

Hydraulic Tester Body qty: 1
Main Hydraulic Cylinder qty: 6
Hydraulic System qty: 1

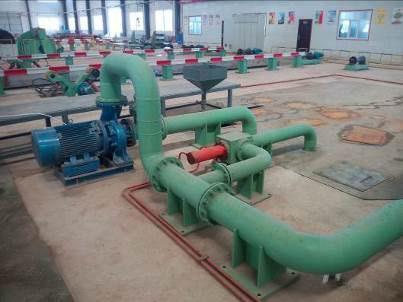

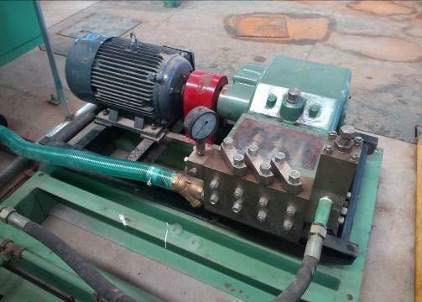

High & Low Pressure Water Systems qty: 1
Electrical Control System qty: 1
Pipe Support Roller, Pipe Receiver, Kicker qty: 3
Embedded and Anchor Bolts qty: 1
Recording System with Computer qty: 1
Sealing Clamps qty: 2
