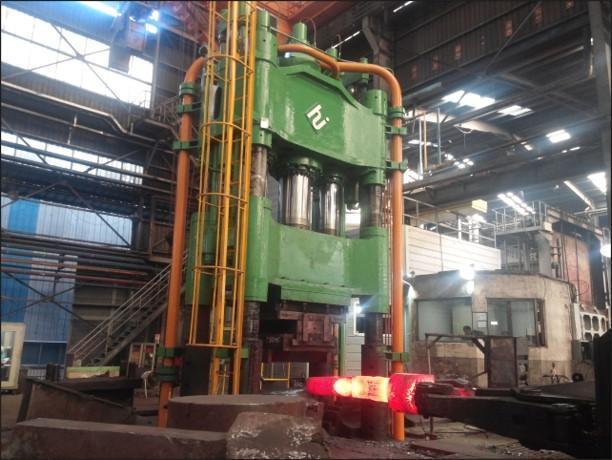

Power: Total = 2,290 tons Main = 1,230 tons
Pressure: Max Pressure = 320 Kg/㎠
Ram Dia: Main = ￠700mm Aux = ￠460mm
Stroke: 1,500mm
Daylight: 3,400
Return Cylinder:
Power: 240 tons
Max Pressure: 320 Kg/㎠
Dia: 2-￠220 mm
Stroke: 1,500mm
Speed
Approaching: 300 mm/sec
Forging / Total Cylinder: 67 / 29 mm/sec
Forging / Center Cylinder: mm/sec
Return: 300 mm/sec
Moving Bolster:
Size: 2,200×6,050 mm
Stroke: 3,000 mm
Speed: 0∼300 mm/sec
Power: 65 tons
Cylinder Dia: 2×1-￠200 mm
Max Pressure: 320 Kg/㎠
Column:
Dia: 4-￠390 mm
Length: mm
Front Distance: 3,250 mm
Side Distance: 1,650 mm
Front Inside Distance: 2,730 mm
Side Inside Distance: 1,180mm

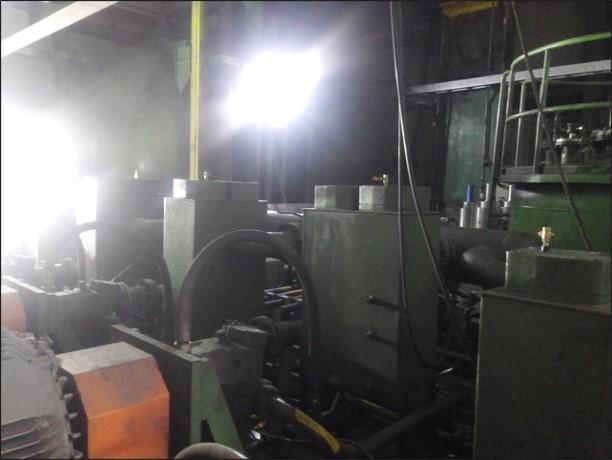

Hydraulic Unit:
Main Pump-1: 3 sets A7VO500LV
Total Q'ty: sets 5
Total Volume: L/min 2,900/1,250
Main Oil Tank Volume: Litter
Prefill Tank Vol: Litter
Total Motor: 185×5 Kw
Accessory:
Pop-up Turn Table: 1 set
Tool Shift: 1 set
Machine weight: abt 250 tons
Date of production: 2008. 8.
Make: Huynjin Koera
