| Coil Weight | 22000 pounds |

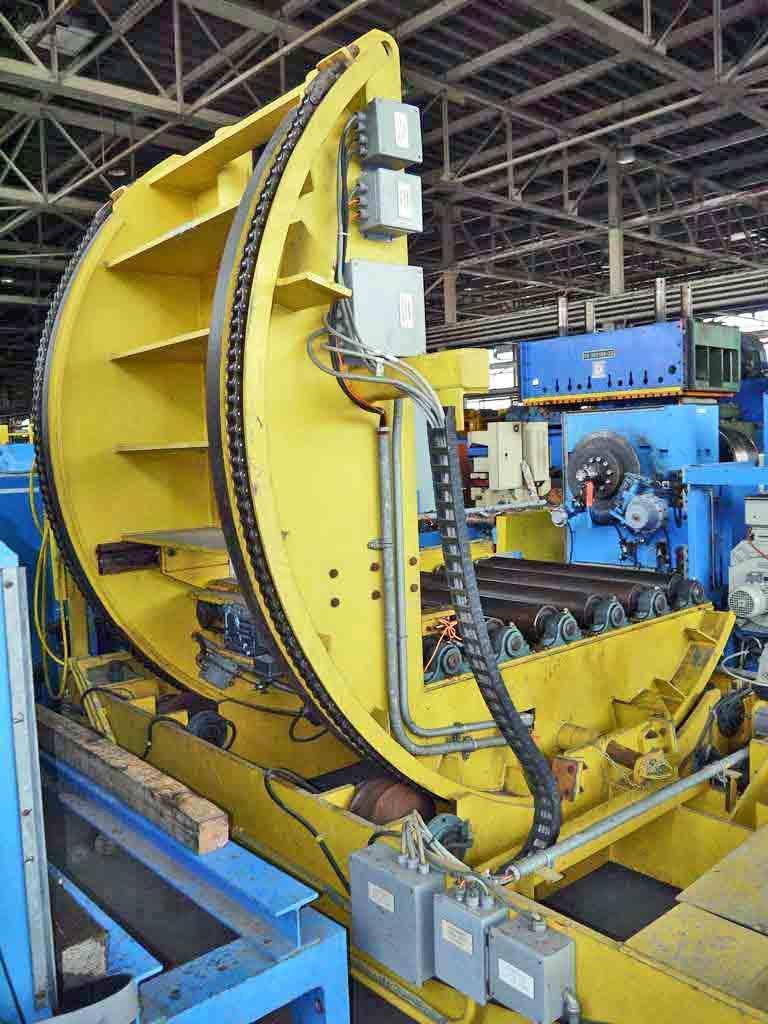

Used 22,000# Traveling Upender
Built by American Industrial Machinery, Indiana.
-Capacity: 22,000# x 72" Wide Coils
-Coil O.D. Capacity: 72"
-Powered Roller Conveyor on Flat Side
6" Dia. x 44" Face Rolls
3 HP AC Motor, 1720 RPM, 230/460 V
-"V" Cradle on Opposite side w/polyurethane pad lining
66" Long Support Arms
-Powered Pallet Adjustment
-Retractable Cable Reel
-Hand Pendant Control
-Electrical Panel w/Remote Control
-Both Axles driven by 3 HP AC Motor, 1720 RPM, 230/246 V
-Tipping powered by 7.5 HP AC Motor, 1720 RPM, 230/460 V
-Passline: Approx. 39" from Floor to top of Conveyor Rolls-Overall Size: 163" L x 101" W x 114" High
