219mm x 10mm Oto Mills Tube Mill Line

Brand
OTO MILLS

Model
21910

Type
Tube Mills

Stock #
605511A

Condition
Used

Year
2005

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Tube Diameter	8.6 inches
Max. Wall Thickness	10 millimeters

Equipped With

Technical Specifications:

Strip Width (mm) Min. 280 Max. 690
Strip Thickness (mm) Min. 2.5 Max. 10.0
Tube Diameter (mm) Min 88.9 Max 219
Production Maximum Speed (mpm) Max 80

Coil Storage Rack
Coil Loading Carriage
Single Uncoiler 15,000 KG
Coil Holding Rolls
Peeler Hold Down Roll
Bulkhead Two Tilting Rolls
Pinch Rolls with 5 Roll Straightener
Edge Guides
Pre Joining Shear

Strip Joiner with Hydraulic Shear & Lateral Guides
Model GG 8010

SMS Meer / Oto Mills Horizontal Accumulator
Model SPSP 220
Capacity: 300 Meter
Fill Speed: 200 Meters/Min
Drive: 89 KW

Pinch Rolls
Edge Guides
Entry Strip Station

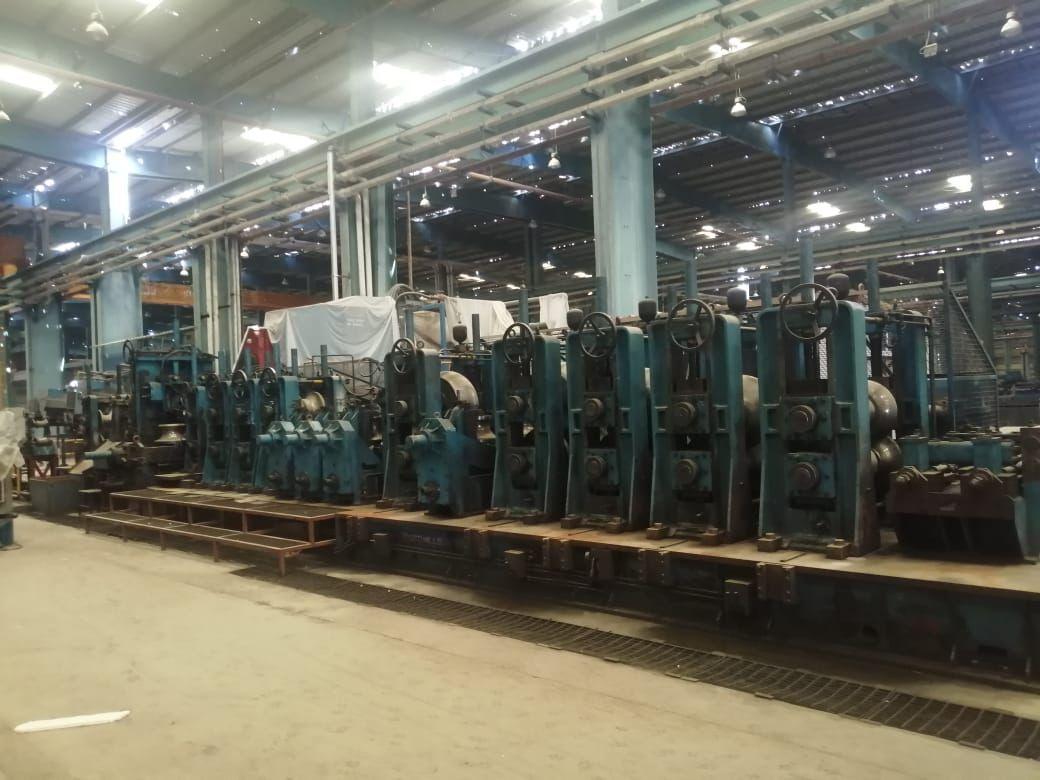

Forming Mill
Entry Pre-Forming Stand
2 Sets of Edge Guides
4 Forming Stands
1 Side Roll Stand
1 Forming Stand
3 Side Roll Cluster
3 Finn Pass Stands
2 Roll Weld Box
Seam Guide Rolls
ID Scarfing
Double OD Scarfing
Exit Pull Out Stand

600 KW Thermatool Solid State Welder
CFI Series
300 KHZ

Thermatool Seam Annealers
(2) 500 KW
460 Volt 50/60 HZ
3 KHZ

Cooling Section

Sizing Mill
4 Sizing Stands
4 Side Roll Stands
3 Turks Heads
1 Straightening Stand

Flying Dual Blade Cold Saw Cut-Off
Model TCC 80 Twin Electric Double Cold Saw
Saw Blade Diameter: 620mm
Saw Motor: 37 KW
Accelerator Motor: 104 KW

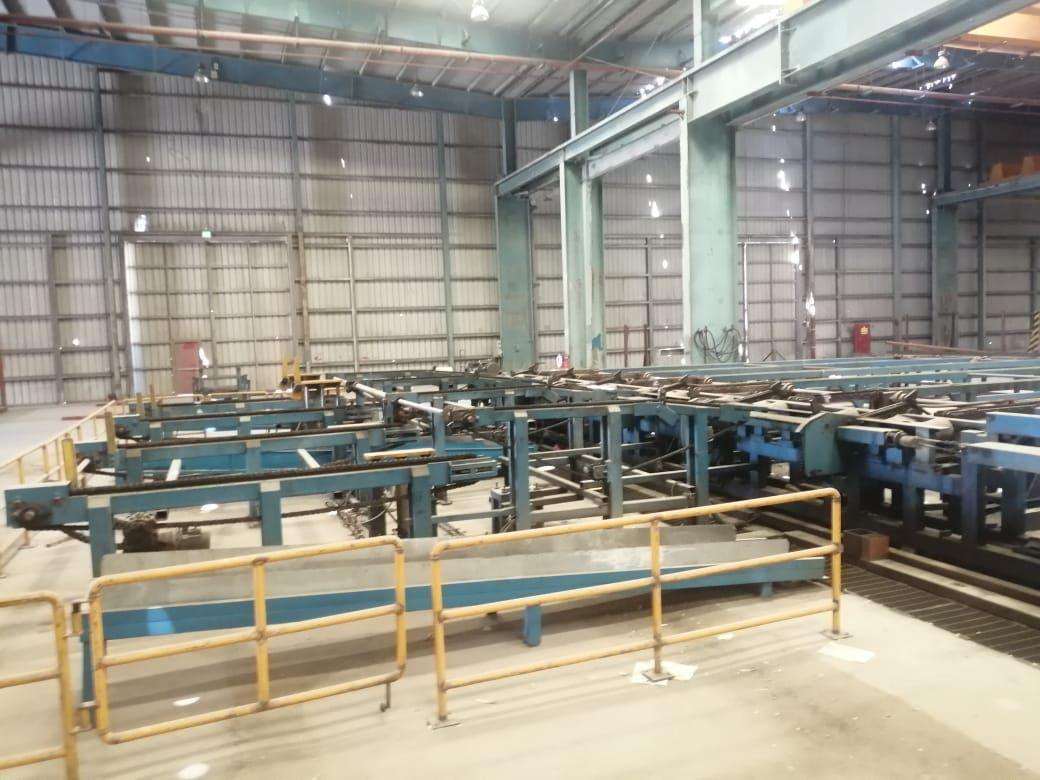

Run Out Table

Packaging Line

Tooling for Rounds, Squares and Rectangles
(TOOLING LIST AVAILABLE UPON REQUEST)

Complete Mill
