2000mm x 3.2mm x 60,000# Bronx Multi Strip Blanking Line

2000mm x 3.2mm x 60,000# Bronx Multi Strip Blanking Line

Brand
BRONX

Model
Not Specified

Type
Slear Lines

Stock #
605576

Condition
Used

Year
1987

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Width	78 inches
Thickness	.126 millimeters
Coil Weight	30000 kilograms

Equipped With

Material: Hot & Cold Rolled Mild Steel
Shear Strength: 50 kgs./mm.2 maximum
Yield Strength: 42 kgs./mm.2 maximum
Strip Width: 2000m - 600mm
Strip Thickness: 3.2mm - .5mm
Coil Weight Capacity: 30,000 kgs
Coil OD: 2100mm
Coil ID: 508mm - 610mm
Sheet Length: 4500mm - 250mm
Slitting Capacity: 4 cuts @ 3.2mm & 6 cuts @ 2.5mm
Stacker Capacity: 5000 kgs
Pack Height: 750mm
Shear Rating: 60 Cuts/Min
Maximum Line Speed: 120 Meters/Min

Complete Line with:

Coil Storage Ramp
Coil Car

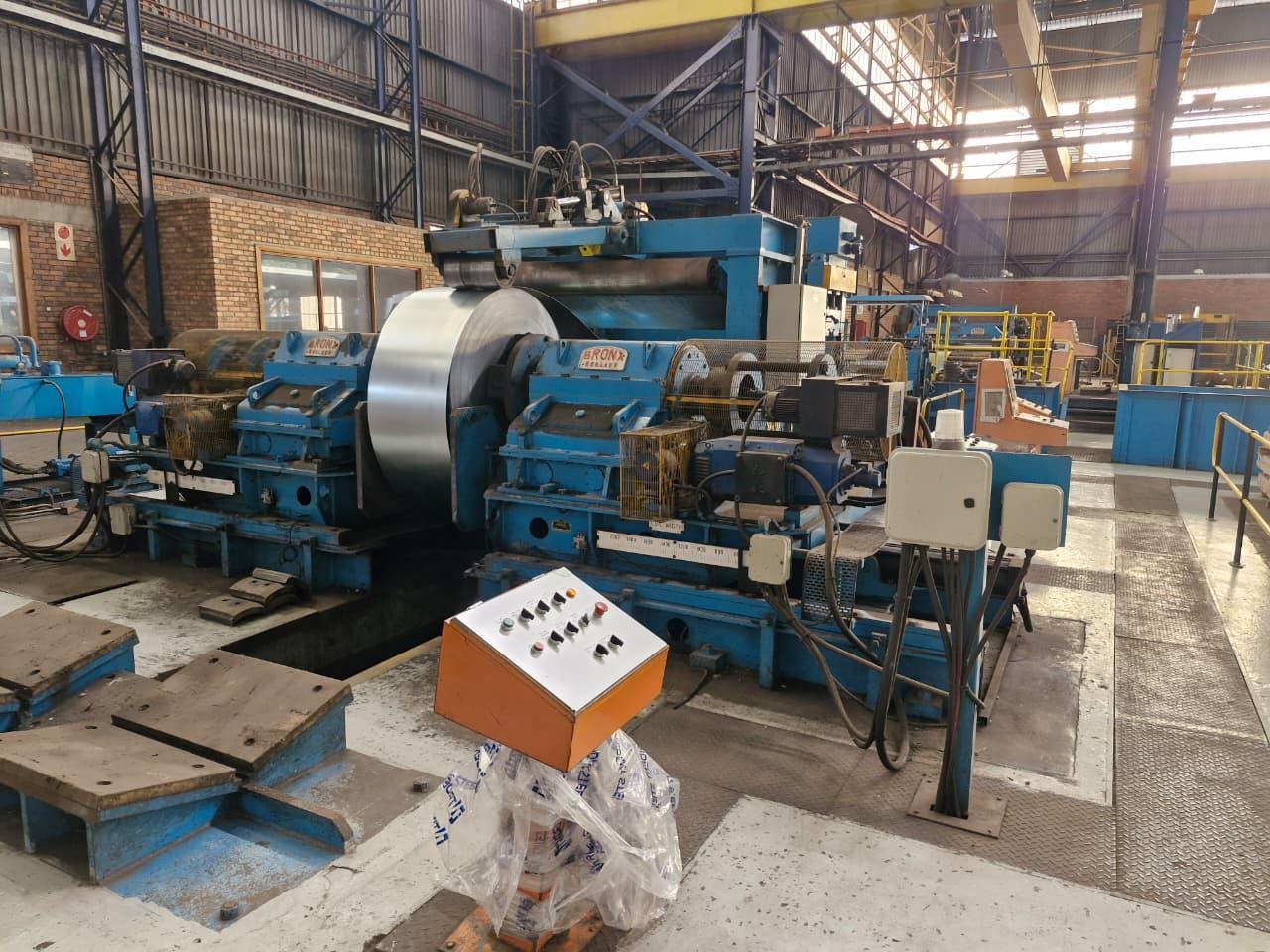

Double Stub Mandrel Uncoiler
Coil ID 508mm - 610mm
Coil Capacity: 30,000 Kg
Sliding Base
Hydraulic Expansion
Tension Control
Dual DC Drag Generator Brakes
Hold Down Roll

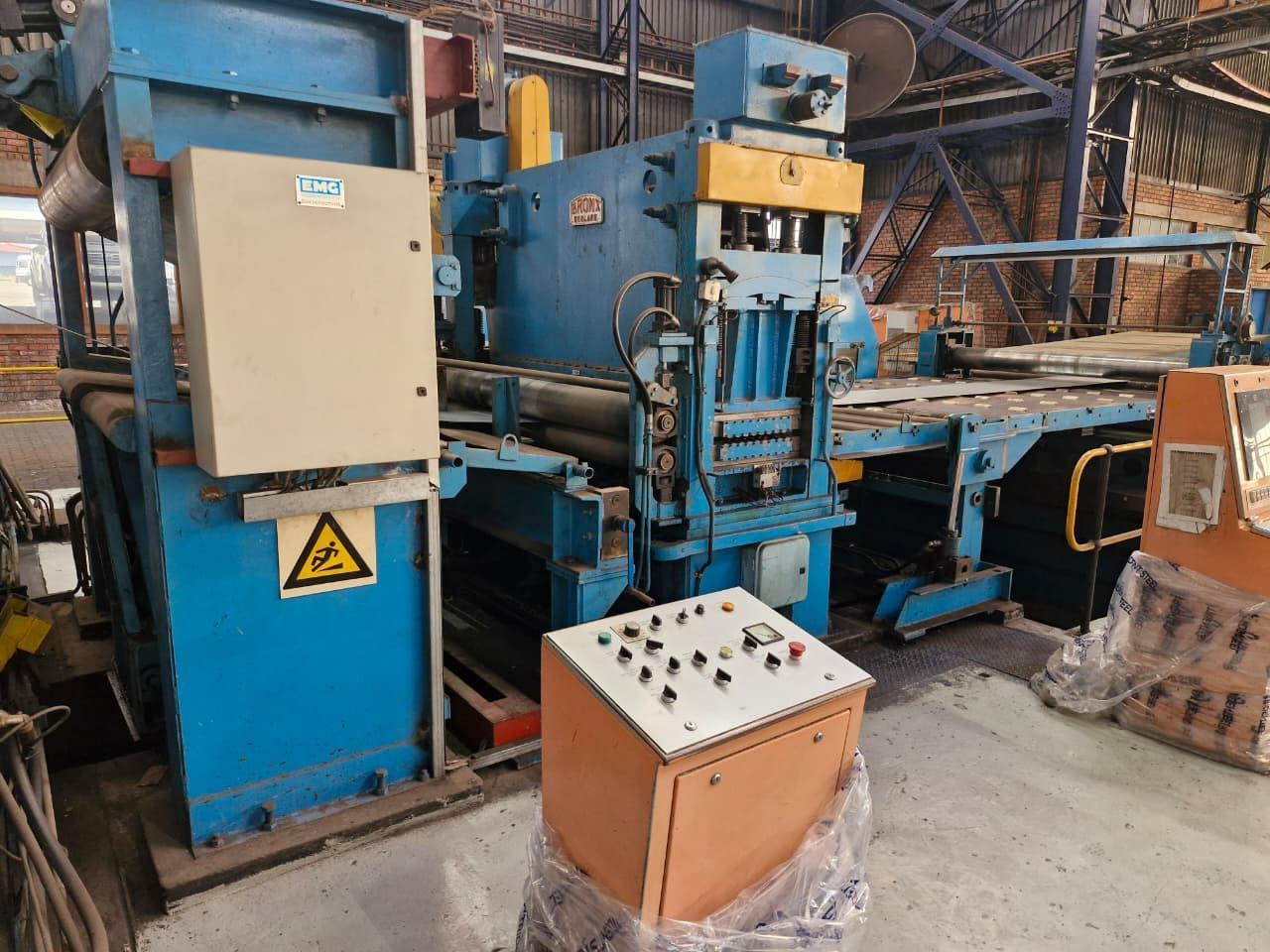

EMG Edge Guide System

Peeler Table
Coil Breaker

17 Roll Precision Leveler
45mm Diameter Work Rolls
Entry Pinch Rolls
9 Flights Top & Bottom Back-Ups
Individual Motorized Adjustments
Digital Readout Back-Up Roll Positioning
Bronx Flexi-Level Digital Controller

Wash / Brush Unit
Sliding Base Moves In and Out of the Line
Top & Bottom Brushing
Squeegee Rolls

Slitter Head
265mm Diameter Arbors
DC Driven
Tooling
Scrap Baller

Looping Pit Cascade Rolls
Looping Pit Cross Over Table
DC Feeder Roll with Top & Bottom Back-Ups
Entry Edge Guides

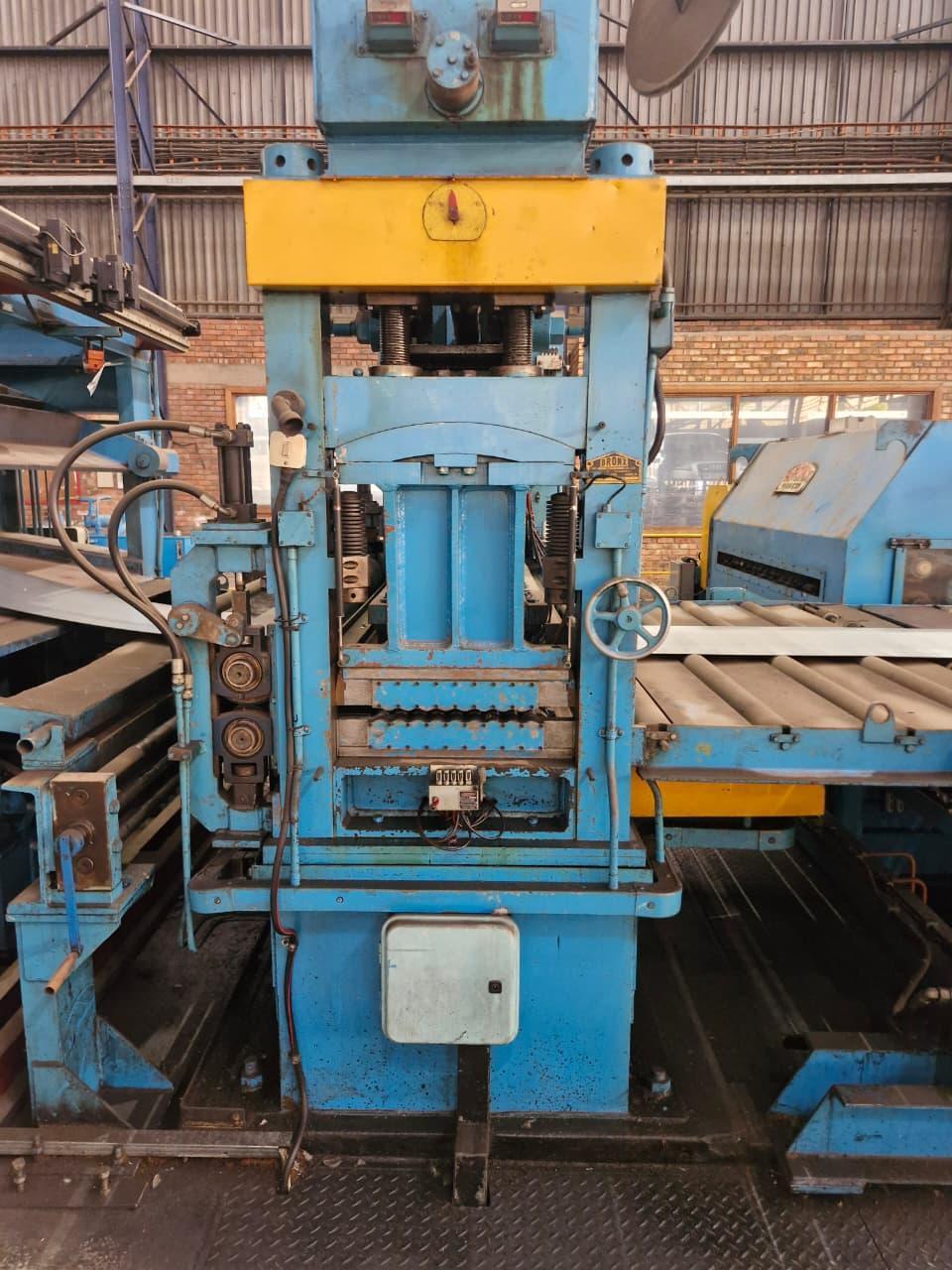

High Speed Shear
Air Clutch & Brake
Air Cushioing
Air Blower

Automatic Stacker
Side Squaring
Motorized Lift Table
Separator Panels for Multi Blanking
Side Discharge Exit Conveyor

Complete Line
