2000mm x 16mm x 35 Ton Cut to Length Line (2025)
2000mm x 16mm x 35 Ton Cut to Length Line (2025)
2000mm x 16mm x 35 Ton Cut to Length Line (2025)
2000mm x 16mm x 35 Ton Cut to Length Line (2025)
2000mm x 16mm x 35 Ton Cut to Length Line (2025)
  • 2000mm x 16mm x 35 Ton Cut to Length Line (2025)
  • 2000mm x 16mm x 35 Ton Cut to Length Line (2025)
  • 2000mm x 16mm x 35 Ton Cut to Length Line (2025)
  • 2000mm x 16mm x 35 Ton Cut to Length Line (2025)
  • 2000mm x 16mm x 35 Ton Cut to Length Line (2025)

2000mm x 16mm x 35 Ton Cut to Length Line (2025)

Brand
Not Specified

Model
Not Specified

Type
Cut To Length Lines

Stock #
605584

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 70000 pounds
Width 78.7 inches
Thickness .63 inches
ID .945 inches
Max OD 3.3 inches

Equipped With

Thickness: 3mm—16mm
Width: 800mm—2000mm
Coil Outer Diameter: 1000mm—2000mm
Coil Inner Diameter: 500mm—800mm
Max. Load: 35T
Cut-to-Length Range: 2000mm—12000mm

Complete Line with the Following Components:

V-Shaped Coil Storage Saddle

Pit Type Coil Car

Cone Type Uncoiler
35 Ton Max Coil Weight Capacity

Free Standing Powered Hold Down Roll

Hydraulic Peeler Table

Entry Edge Guides

Entry Pinch Rolls
250mm Diameter

Transfer Table

5 Roll Flattener
250mm Diameter Rolls
75KW Motor Drive

Inspection Roller Table

Length Measuring and Coding Machine

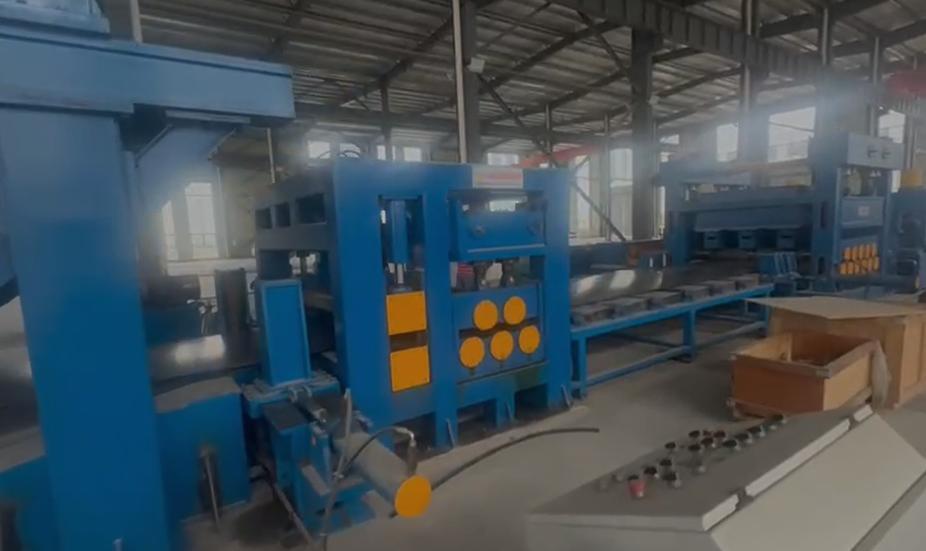

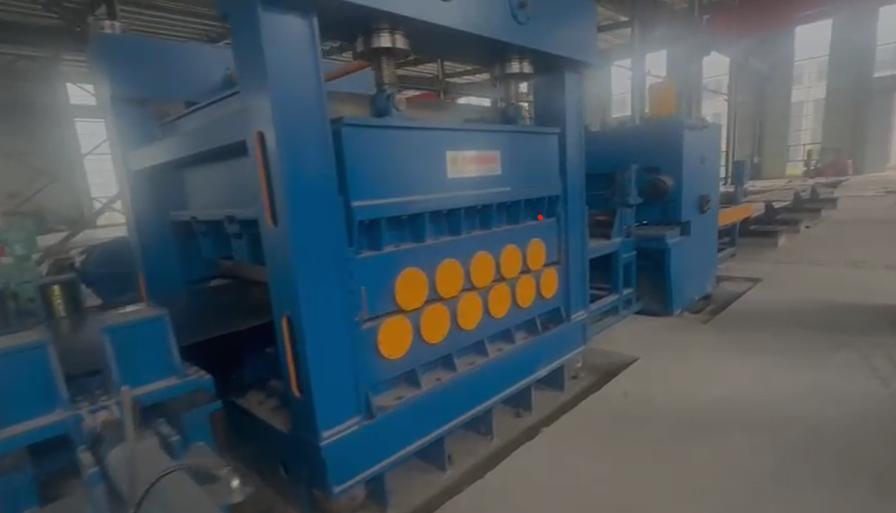

11 Roll Leveler
230mm Diameter Roll
200KW Motor Drive

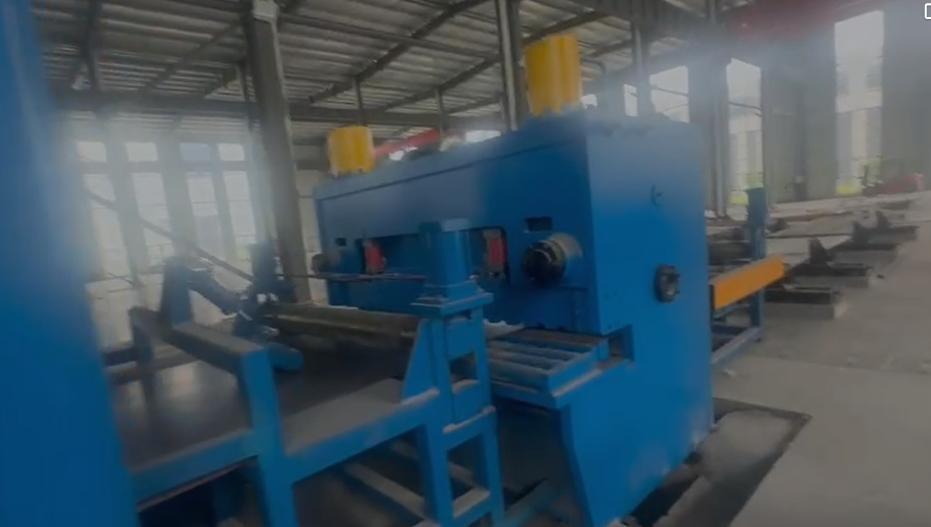

Hydraulic Shear
Thickness Range: 3mm—16mm
Blade Face: 2500mm
Speed: 8-12 Cuts/min

Scrap Trolley

Swinging Feeding Device

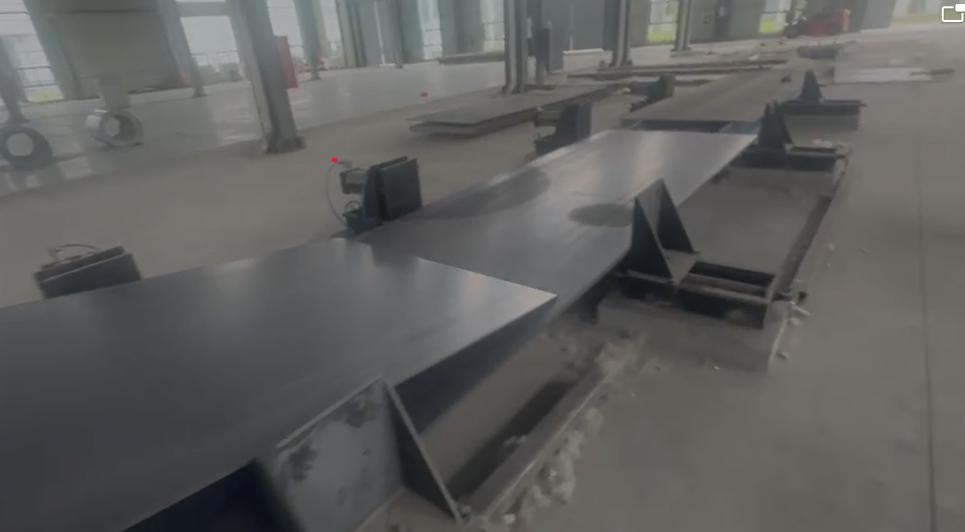

Unloading Table (Sheet Aligning Mechanism)

Complete Line with Hydraulics, Controls, Electrics.
