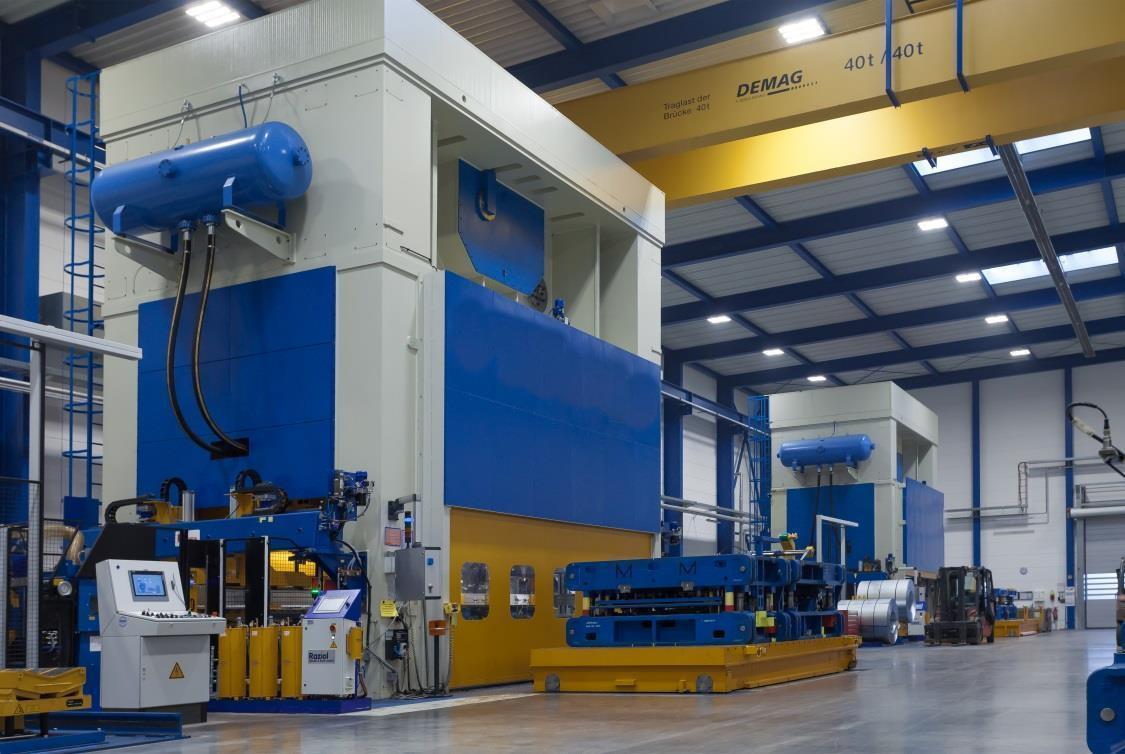

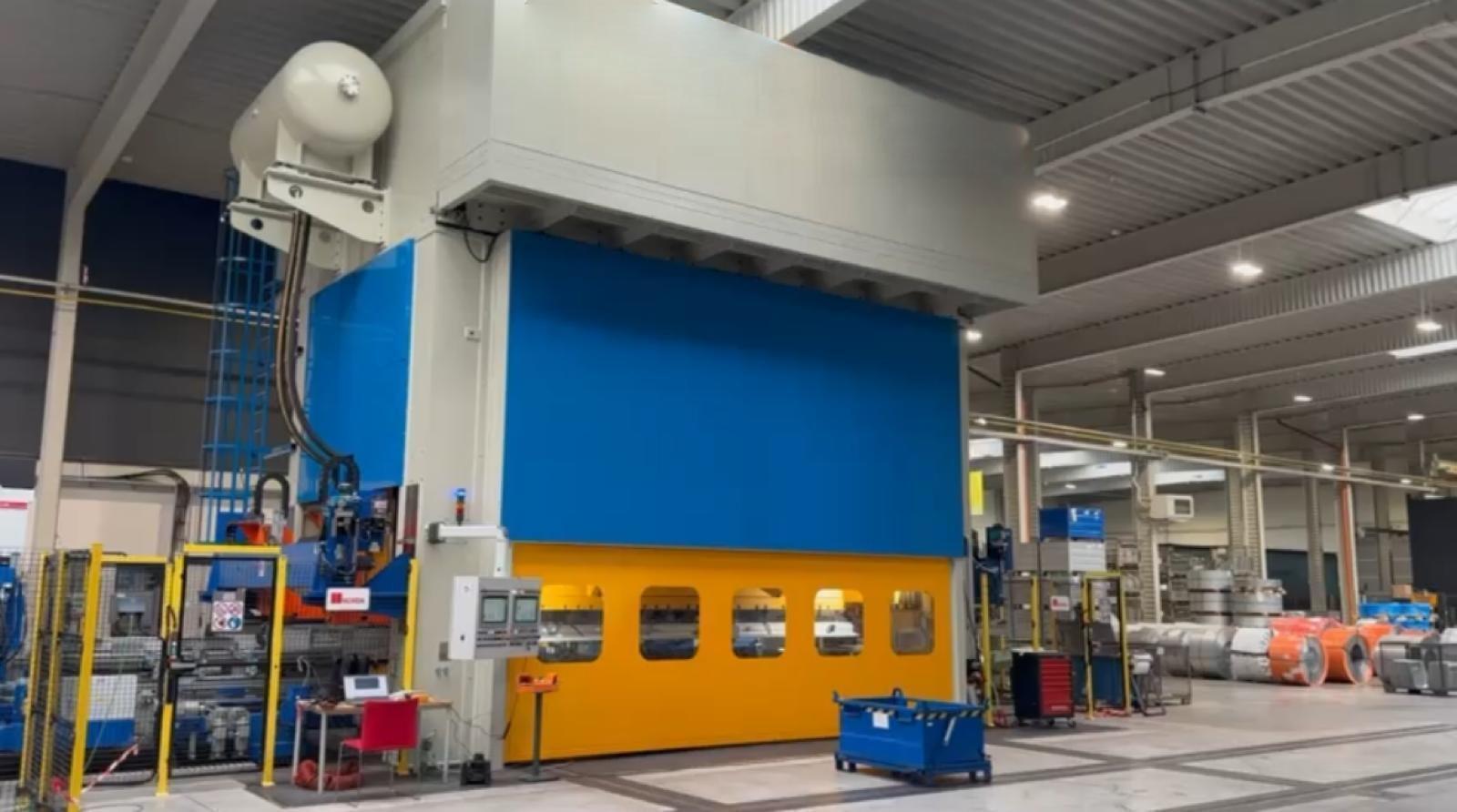

2000 Ton Double Sided Eccentric Press with 4 Connecting Rods with Link-Drive System

Brand
Not Specified

Model
Not Specified

Type
Presses, Straight Side

Stock #
605257

Condition
Used

Year

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Tonnage	2000 tons
Stroke	900 millimeters
Bed W	6000 millimeters
Bed L	2480 millimeters

Equipped With

Type: Link Drive
Nominal Force: 20,000 kN
Connecting Rods: 4 N.
Working Table Dimensions: 6000 x 2480 mm
Moving Bolster: 1 No
Direction: Frontal
Slide Dimensions: 6000 x 2480 mm
Distance between the sides: 6000mm
Window in the sides: 3300mm
Fixed Slide Stroke: 900mm
Strokes a 1' variables: 8 ÷ 25 No.
Displayed and Motorised Slide Adjustment: 400mm
Distance between the table and slide with adjustment at the top and max. stroke at the bottom: 1350mm
Main motor power: 370 kW AC +Inverter
Line Voltage: 400 V - 3ph. - 50 Hz
Auxiliary Circuits Voltage: V 110-24
Pressure required for pneumatic system: 6 bar
Water temperature (if applicable) for cooling control unit: 20°C
