20" (550mm ) x .027" (0.7mm) Ungerer Tension Leveling Line

Brand
UNGERER

Model
Not Specified

Stock #
605215

Condition
Used

Year
1984

Width 20 inches

Equipped With

Maker: UNGERER
Built: 1984
Reinstalled: 2013

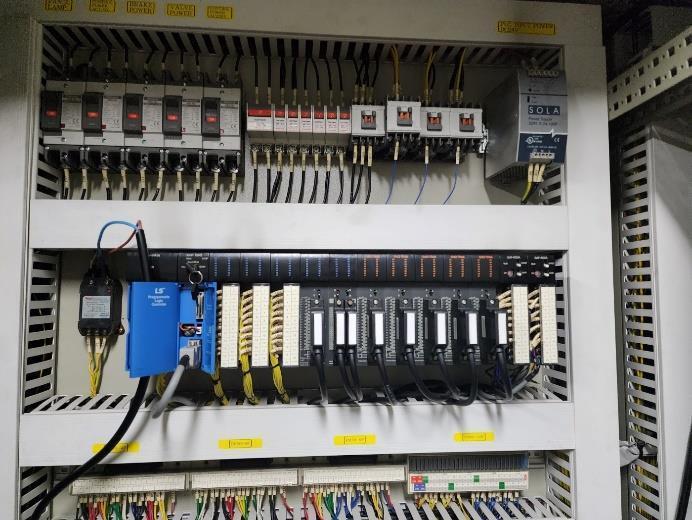

Last modification: 2013 All Electric controller by New, Korean Brand
Line speed: Max 150m/min, 120 m/min average product speed
Material width: Max 550mm,Normal 450mm width actual product for soft stainless steel
Gauge range: Max: 0.7mm, Min 0,07mm [ Average actual product : 0,6 – 0,1mm]

Line direction: Left  to Right

Entry coil ID: 508Ømm
Exit coil  ID: 508Ømm
Exit coil  OD: 1,350Ømm
Forward tension: 130,000psi [Product tension: 0,3-0,4 %]
Max coil weight: 5,500KG

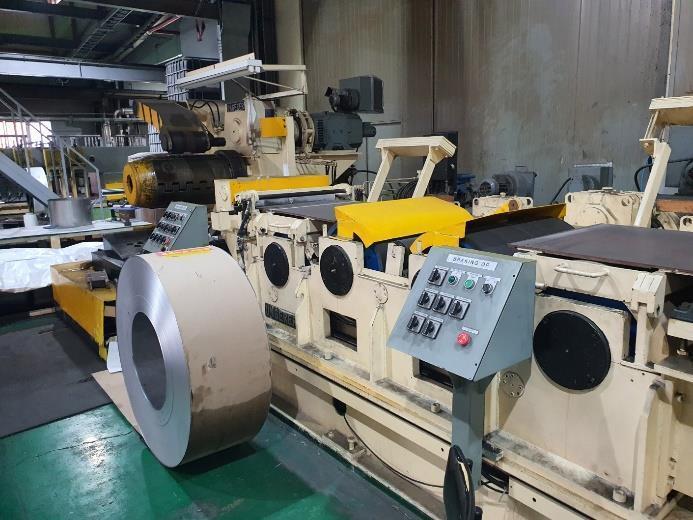

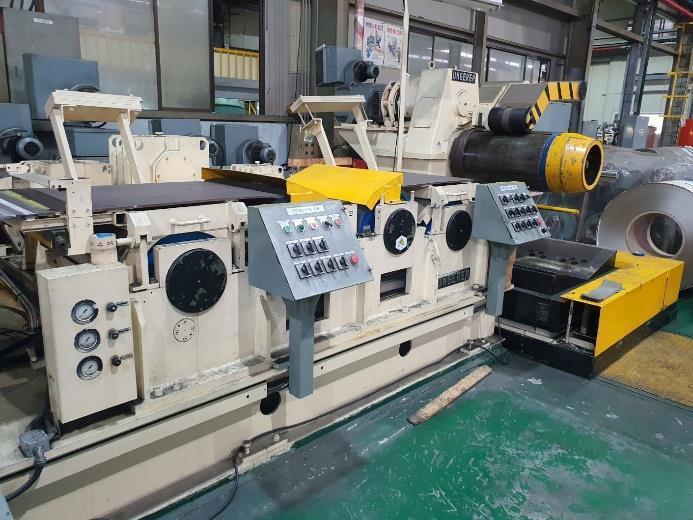

UNGERER Leveller
Stretch Work Roller: 20,32Ømm x 760mmLong x 23 roller
Intermediate roller: 15,24Ømm
Backup roller: 20,32Ømmx27Wmmx11rollx2strand x 14 block
Tension Bridle roller: 500Ømm x 700Wmm
Gauge control: VOLLMER Point contact
Power motor: Reliance drive motor, Parker DC drive pack

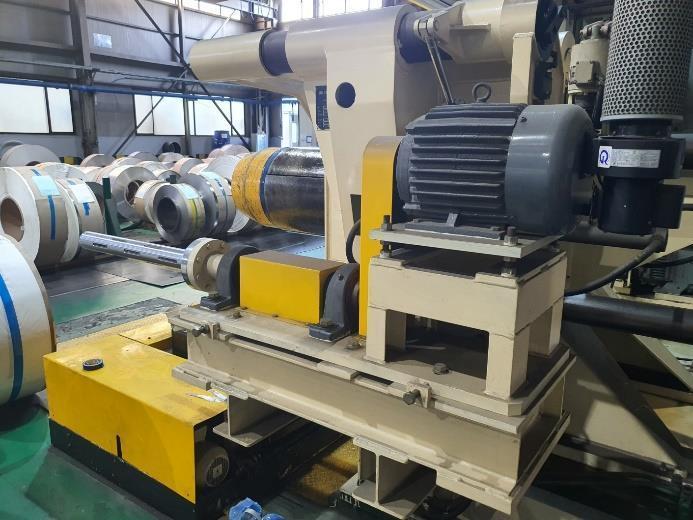

 Uncoiler: DC 15kw
 Back ward Tension Bridle #1 DC14kw, #2 DC7kw, #3 DC56kw, #4 DC28kw/1490RPM
 Forward  Tension Bridle #1 DC32kw, #2 DC16kw, #3 DC130kw, #4 DC65kw/1490RPM

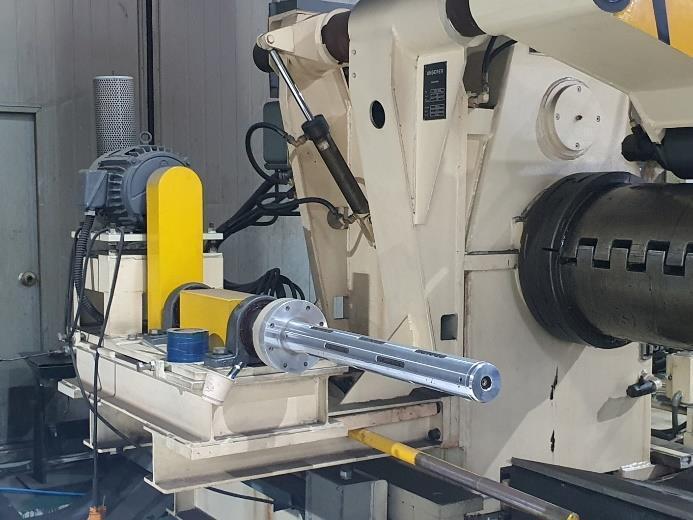

 Recoiler: DC20kw

Line area: 6,000mm X 13,000mm
Electric power source: AC440volts x 3Phase x 60Hz

Large Amount of Spare Parts
