Specifications:
VERTICAL PLANE:
NUMBER OF PASSES ...... 4
NUMBER OF ROLLS ....... 8, 4 OVER 4
DIAMETER OF ROLLS ..... 8"
ROLL ADJUSTMENT ....... 7" TO 12", SCREW DOWN
BASE ADJUSTMENT ....... POWERED
SHAFT DIAMETER ........ 3-1/2"
HORIZONTAL PLANE:
NUMBER OF PASSES ...... 4
NUMBER OF ROLLS ....... 8, 4 OVER 4
DIAMETER OF ROLLS ..... 8"
ROLL ADJUSTMENT ....... 7" TO 14", SCREW TYPE
BASE ADJUSTMENT ....... MANUAL
SHAFT DIAMETER ........ 3-1/2"
TOOLING:

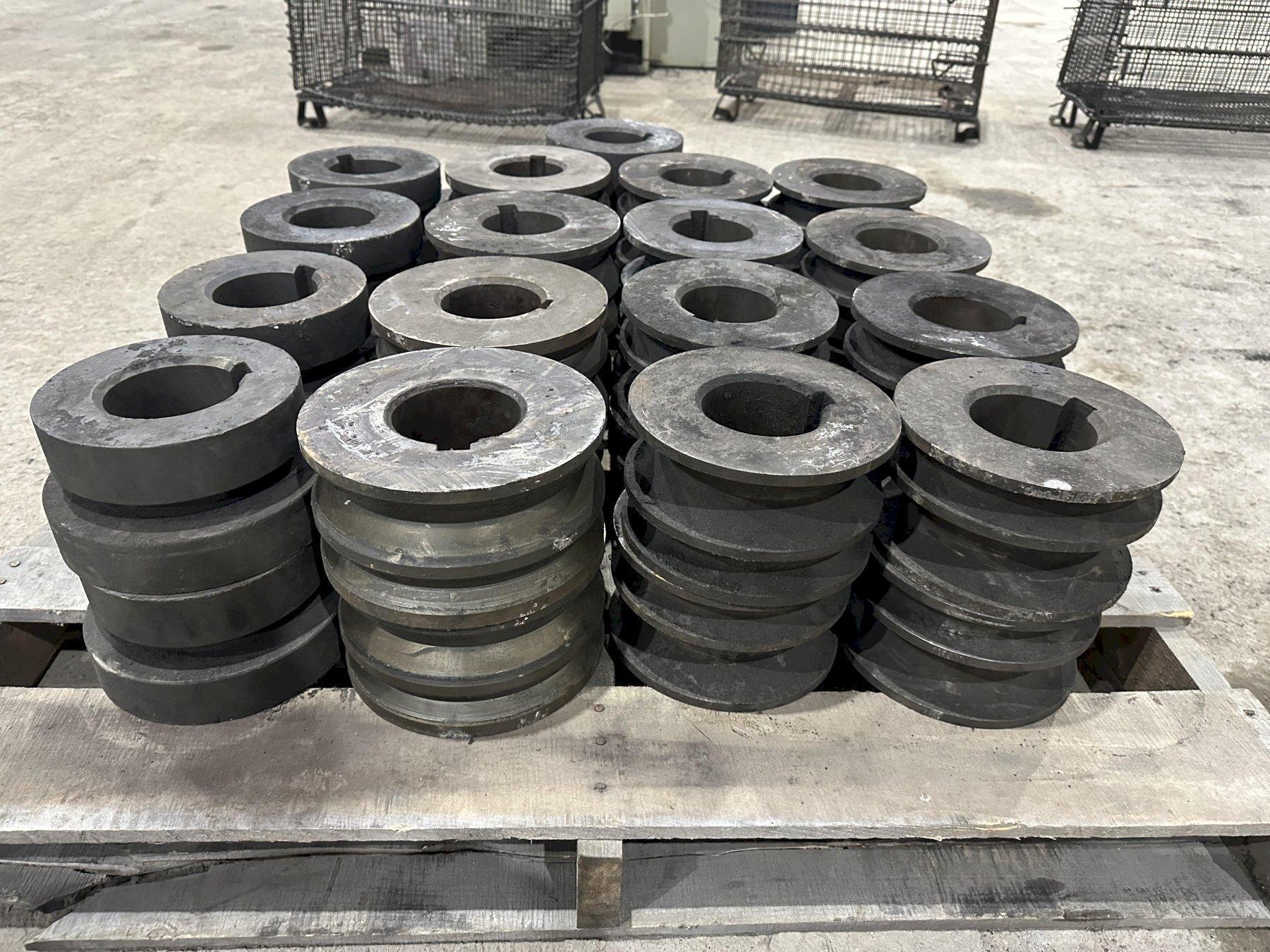

ROLL DIAMETER ......... 8"
ROLL INSIDE DIAMETER .. 3-1/2"
FLAT BAR ..............
ROUND BAR ............. 1-1/4" & 2"
HEX BAR ............... 1-1/4" & 2"
SQUARE BAR ............ 3/4" & 1-1/4"
