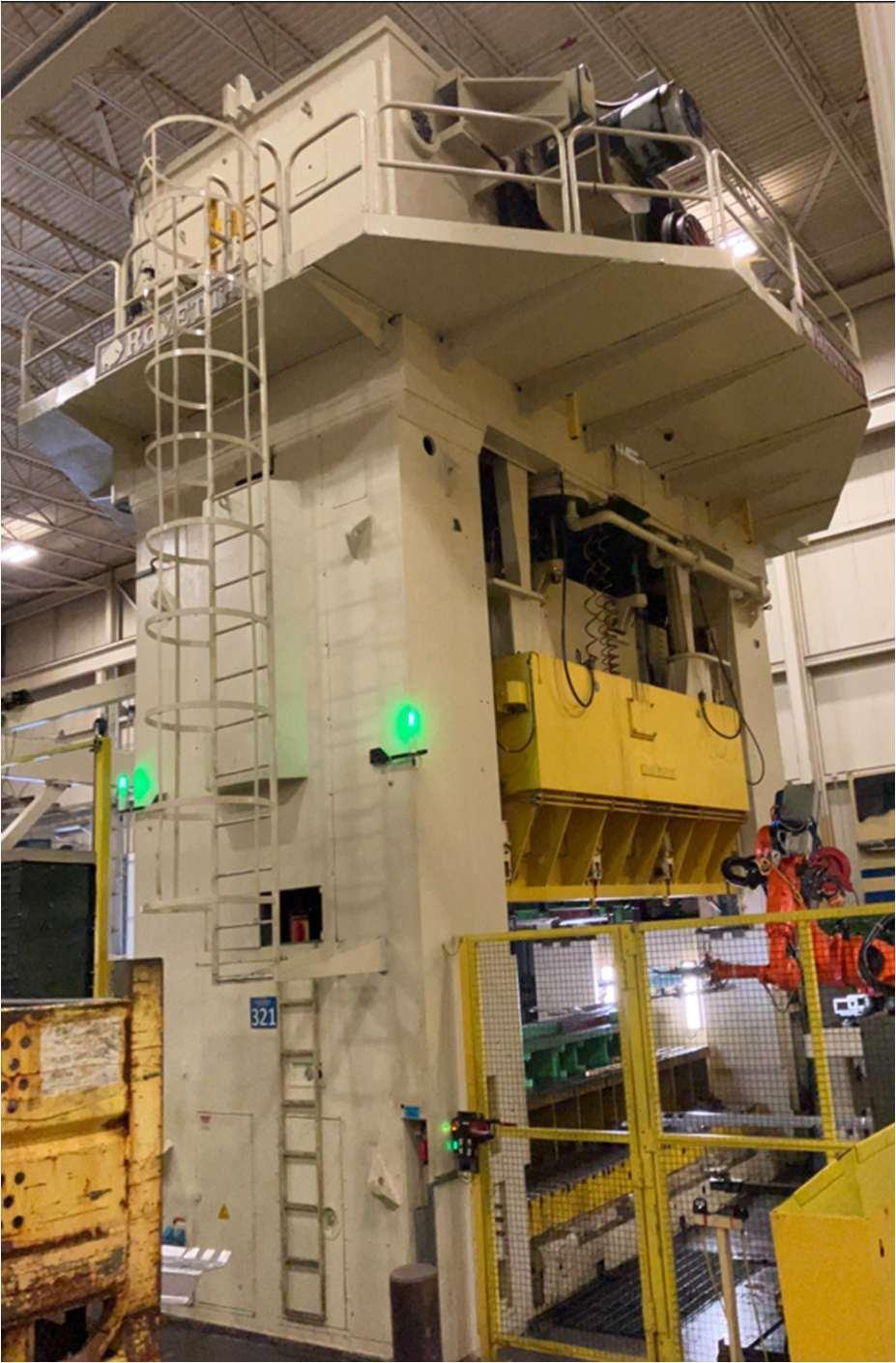

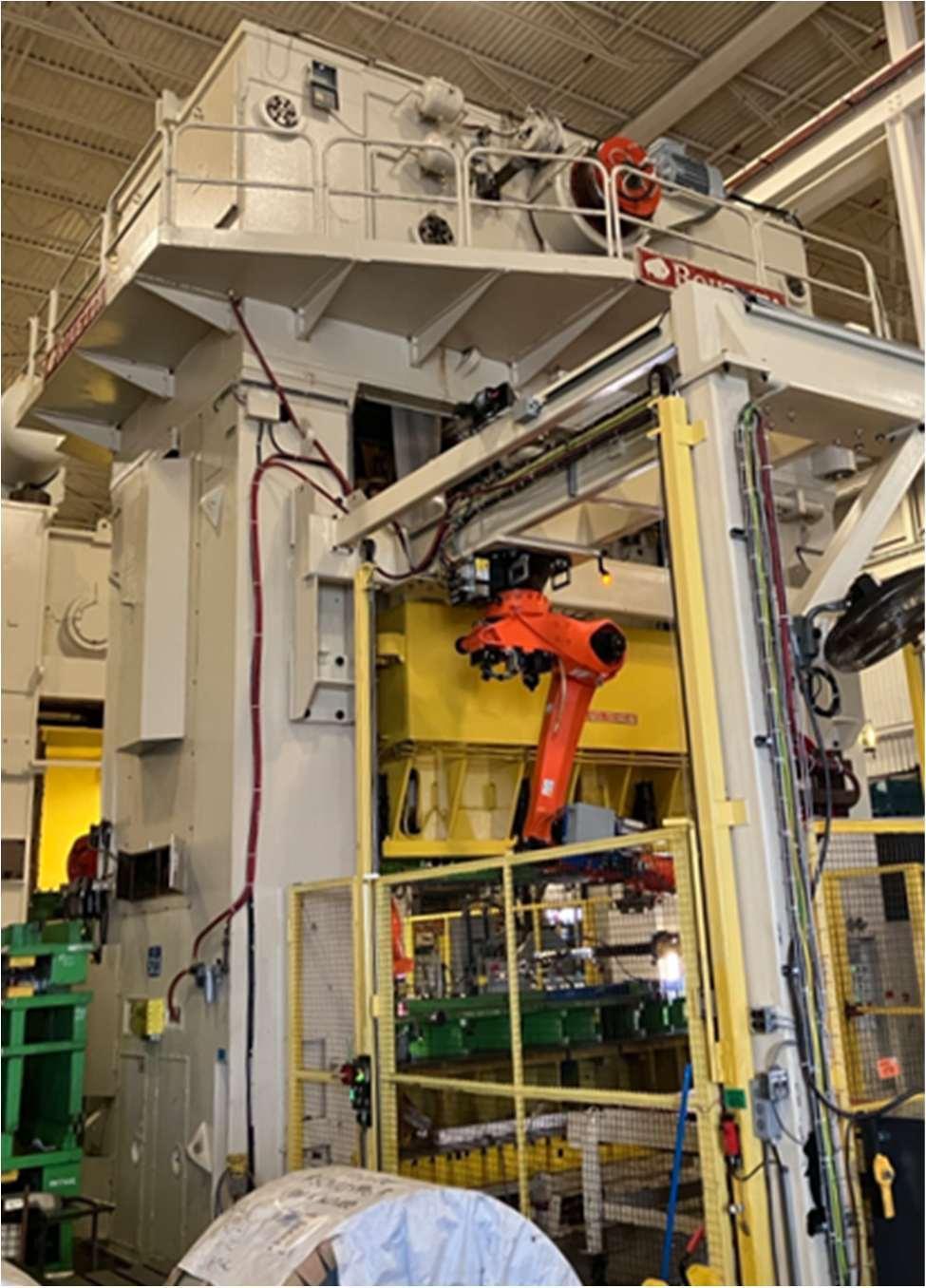

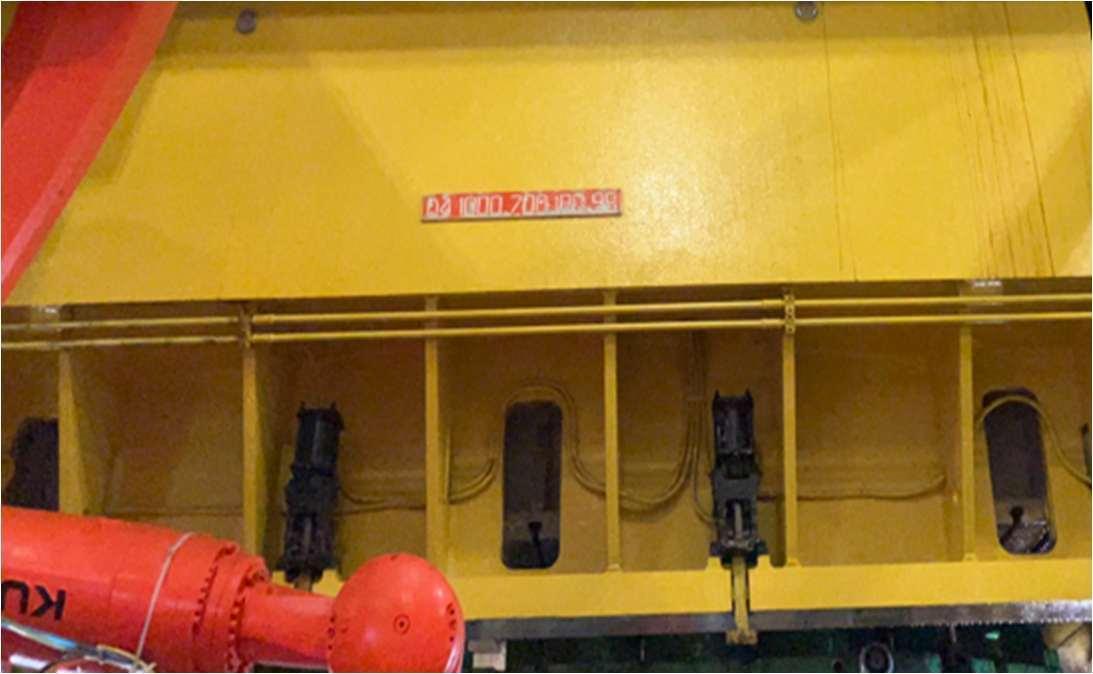

Model: D4-1000-700-180-96
Capacity / Tonnage: 1000T @ 1/2 in ABDC Inner / 700T @ 1/4 in ABDC Outer
Slide Area (L-R x F-B): 161” x 72” (4089 x 1829 mm) Inner / 180” x 96” (4572 x 2438 mm) Outer
Stroke: 40” (1016 mm) Inner / 32” (813 mm) Outer
Slide Adjustment: 20” (508 mm) Inner and Outer
Shut Height over Bolster (SDAU): 96” (2438 mm) Inner / 87” (2210 mm) Outer
Slide T-Slots: 72” (1829 mm)
Strokes per minute: 12
Capacity of Main Motor: 110 KW
Number of Cushions: 0
Height above floor: 31.75 ft (9680 mm)
Bolster Area (L-R x F-B): 180” x 96” (4572 x 2438 mm)
Number and Type of Bolster:
(2) Uni-Directional Rolling Bolsters
20” thickness / height
Top plate: T-slotted (1-inch slots)
(1) Left to Right and (1) Right to Left movement
Bolster clamps to fix the bolster to the press base
Equipped with:
Standard press controls
Press control package with inch, single and continuous cycle run modes, emergency stop and
palm-button circuits
Color touchscreen
(1) Palm-button stand
(4) Plugs for palm-button stand
(8) Outlets for external automation
Automation control at the operator’s panel
Semi-automatic counterbalance control at the operator’s panel programmable by recipe
Lubrication control at the operator’s panel
Tonnage monitor
Die Lights
(2) Ram Blocks
