168.7mm x 7.1mm Oto Mills Tube Mill Line

168.7mm x 7.1mm Oto Mills Tube Mill Line

Brand
OTO MILLS

Model
1687

Type
Tube Mills

Stock #
605511B

Condition
Used

Year
2003

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Tube Diameter	6.6 inches
Max. Wall Thickness	7.1 millimeters

Equipped With

Year 2003

Technical Specifications:

Strip Width (mm) Min. 198 Max. 530
Strip Thickness (mm) Min. 2 Max. 7.1
Tube Diameter (mm) Min 63.5 Max 168.2
Square Profile Sections Min 50 Max 130
Rectangular Profile Sections Min 60 x 40 Max 160 x 100
Maximum Speed 90m/min

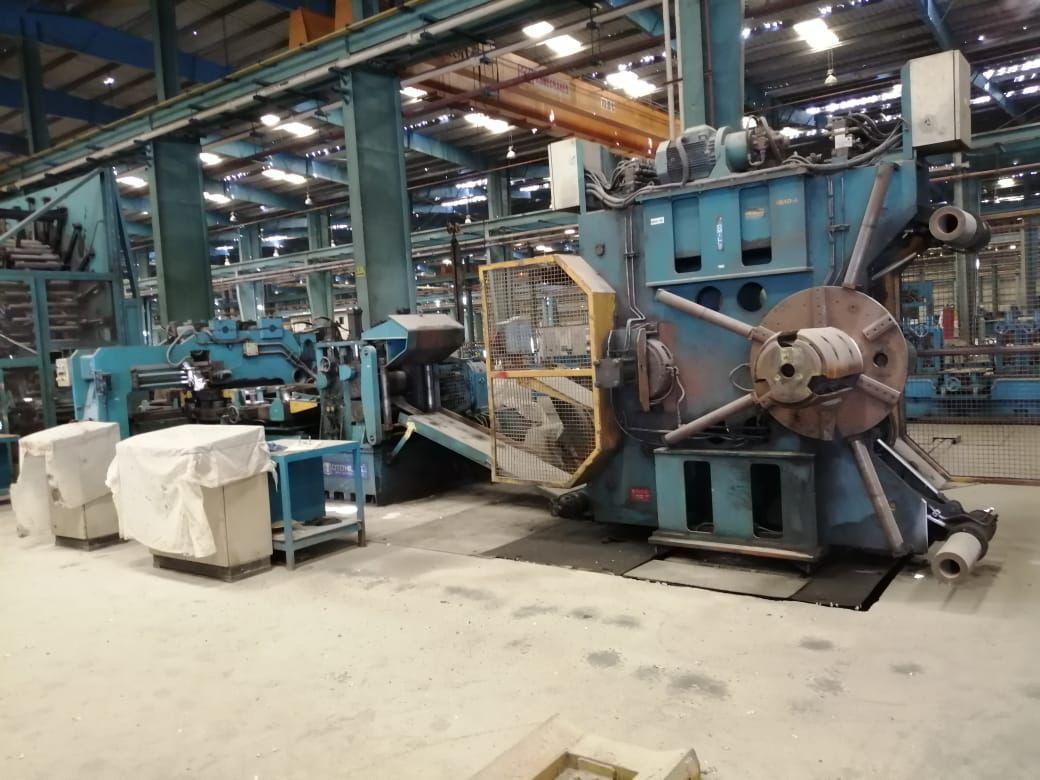

14.000# Double End Uncoiler
Pinch Rolls & Straightener
Strip Joiner Model GG 568

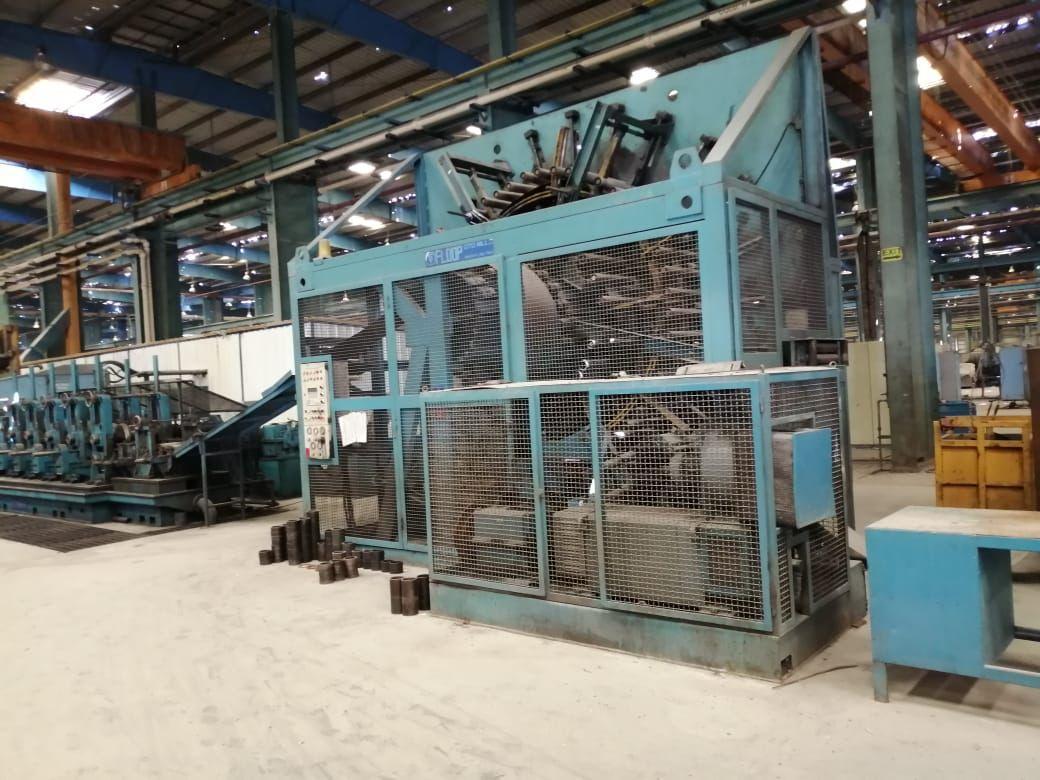

Vertical Floop FR 465 H

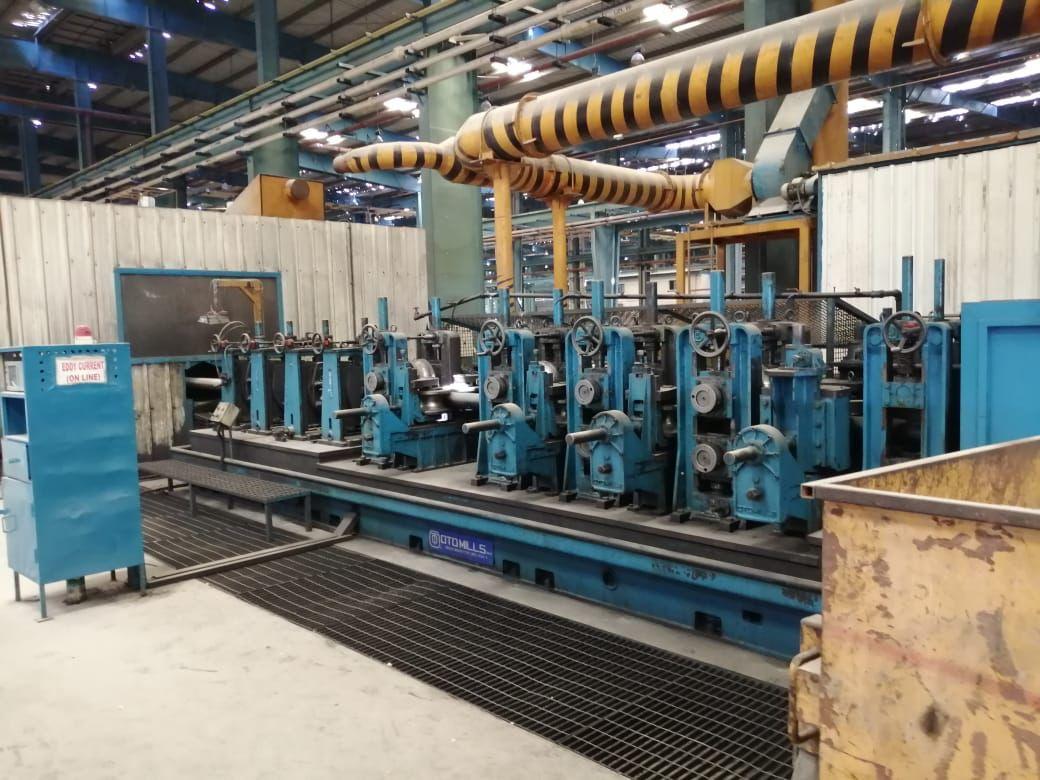

Forming Mill
Entry Edge Guides
5 Roll Flattener
2 Sets of Edge Guides
5 Forming Stands
4 Side Roll Stands
2 Side Roll Cluster Stands
3 Finn Pass Stands
2 Side Roll Stands
Forming Mill: 158 KW Drive
Finn Pass: 158 KW Drive
Pinch Rolls: 195 KW

500 KW Thermatool Solid State Welder
CFI Series
3/4 Roll Welding Box
Double OD Scarfing

Cooling Section

Sizing Mill
4 Sizing Stands
4 Side Roll Stands
4Sizing Mill:
Turks Heads
158 KW Drive

Flying Saw Cut-Off
TCC 120/168 Friction Saw Cut-Off
Blade Diameter: 800mm
Saw Power 110 KW
Accelerator Power 75 KW

Run Out Table

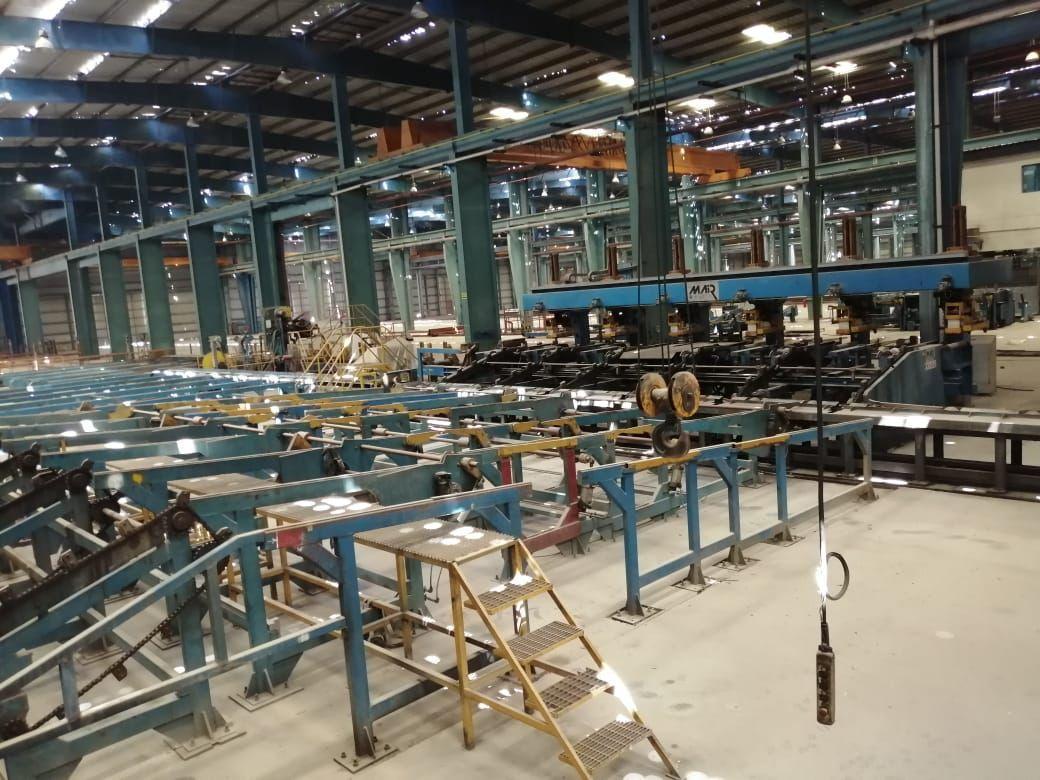

Mair Packaging Line
Model MPS RH200/D/6/SL
Tube OD: 60.3mm - 168.3mm
Length: 4.0 Meter to 13.0 Meter
Square & Rectangle Bundle: 250 x 200 to 750 x 600 mm
Hexagon Bundle: 300 x 260 to 700 x 610 mm
Max Bundle Weight: 4000 Kg.

Dual Head End Facer / Beveler (2 Heads)
Pipe Diameter: 2" - 6"
Pipe Lengths: 6 to 12 meters
Outside Bevel: 30 degress
Inside Bevel: 45 Degrees

Dual Head Hydrostatic Tester 280 Bar Max Testing Pressure
Pipe Diameter: 60.3mm - 168.3mm
Pipe Lengths: 5.5 - 13 Meter
Max Pressure: 280 Bar
Washing Station

Tooling Rounds, Squares & Rectangles
(TOOLING LIST AVAILABLE UPON REQUEST)

Complete Mill
