Manufacturer: Token (Japan)
Year: 1991
Material Strenght: 50Kg/mm2
Thickness Range: 1.6mm to 6mm
Width Range: 600mm to 1600mm
Coil ID Range: 508,610,711, 762mm Diameters
Coil OD MAX: 2300mm
Max Speed: 50 Cut/min.... 70m/min
Format Data:
Sheet Length: 1000mm to 3100mm
Lenght Tolerance: +/-0.5mm
Speed/Thickness Table:
1.6mm to 3.2mm.... 70m/min
3.3mm to 4.5mm.....45m/min
4.6mm to 6mm........46m/min
Electrical Data: 440V /220V -60HZ
Complete Line with the following Components:
3 Coil Storage Skid

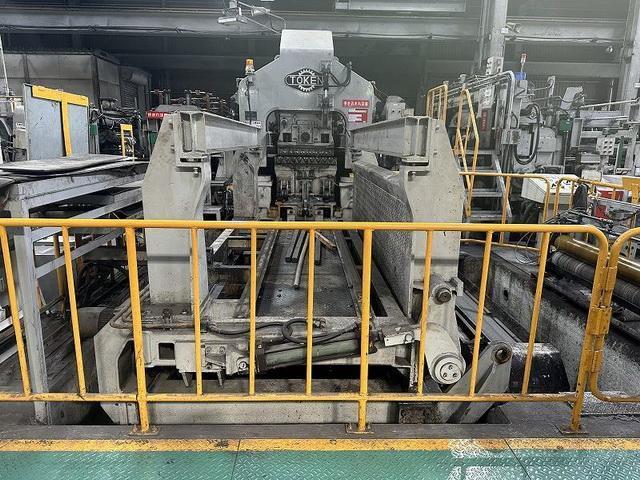

Entry Pit Type Coil Car
Double Expandable Mandrel
30 Ton Coil Weight Capacity
Coil ID Range: 508,610,711, 762mm Diameters
Coil OD MAX: 2300mm
37KW DC Motor Drive
Driven Hold Down Roll
Peeler Table
Entry Pinch Rolls
3 Roll Flattener
22 KW DC Drive
Side Trimmer
22KW DC DRive
Scrap Choppers
22KW DC Drive
Scrap Conveyor

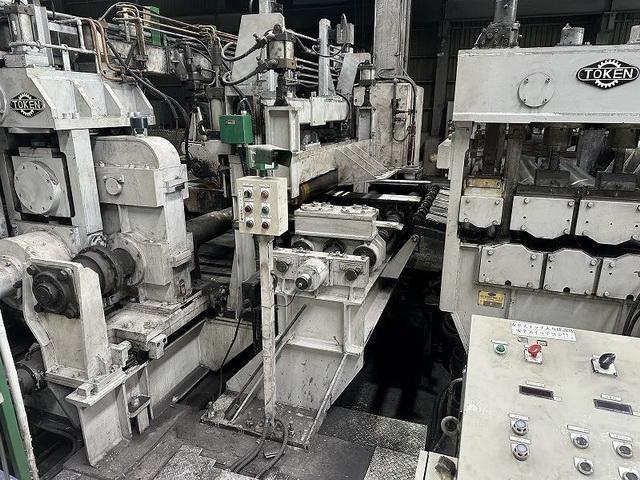

4-HI Precision Cassette Type Leveler
Work Roll Diameter: 90mm
Work Roll Face: 1750mm
Back Up Roll Diameter: 94mm
Drive Motor: 110KW DC Drive
Neopreme Double Pinch Roll
300mm Diameter x 1750mm Roll Face
37KW DC Motor Drive
Flying Shear
150KW DC Motor Drive
Measuring Roll: 95mm Diameter
Feeder Roll: 155mm Diameter
Inspection Table

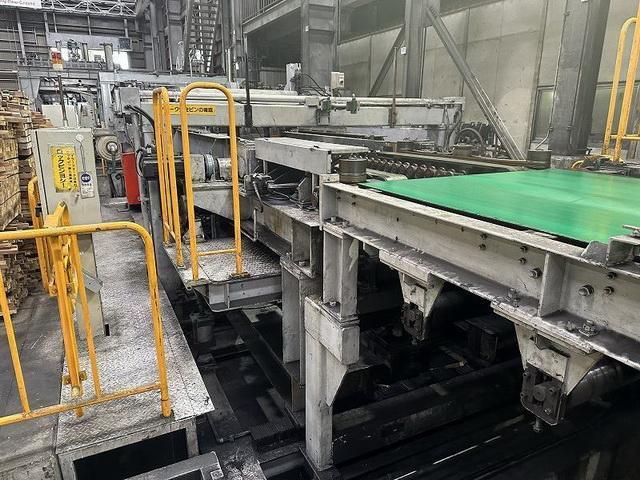

Belt Conveyor
Reject Table
Automatic Stacker
Complete with Spares, Electrics, Hydraulics, Controls
Installed
