2000mm x 9mm x 30,00kg Fimi / Spotti Cut-To-Length Line

Brand
SPOTTI

Model
Not Specified

Type
Cut To Length Lines

Stock #
605422B

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 60000 pounds
Width 78.7 inches
Thickness .354 inches
ID 20 inches
Max OD 78.7 inches

Equipped With

Thickness Range: 2.5mm - 9.0mm
Coil Capacity: 30,000kg
Coil OD: 2000mm
Coil ID 600mm - 810mm

Complete Line with:
Coil Storage Ramp
Coil Car

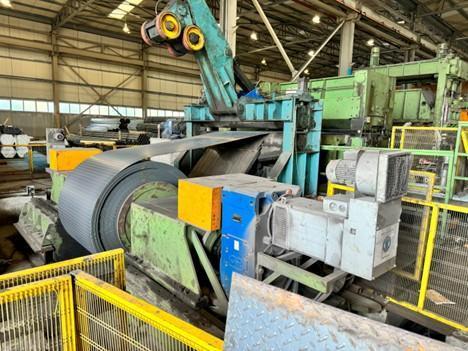

Double Cone Uncoiler
DC Drag Generator Brakes
Sliding Base
Hold Down Roll
Peeler Table
Pinch Rolls

5 Roll Coil Breaker
250mm Diameter Rolls

11 Roll Backed Up Leveler
110mm Diameter Rolls
5 Flights Top & Bottom Back-Ups
Back Ups with Individual Motorized Adjustments
Motorized Tilt
168 KW DC Motor

19 Roll Light Gauge Leveler
48mm Diameter Work Rolls
Motorized Adjustments Motorized Back-Ups
Edge Guides
Pinch Rolls
132 KW DC Drive

Mechanical Flying Shear
Linear Bearing Traveling

Exit Gauging Table
tacker Motorized
Lift Tables Motorized
Exit Conveyor
Motorized End Stop

Digital Controls

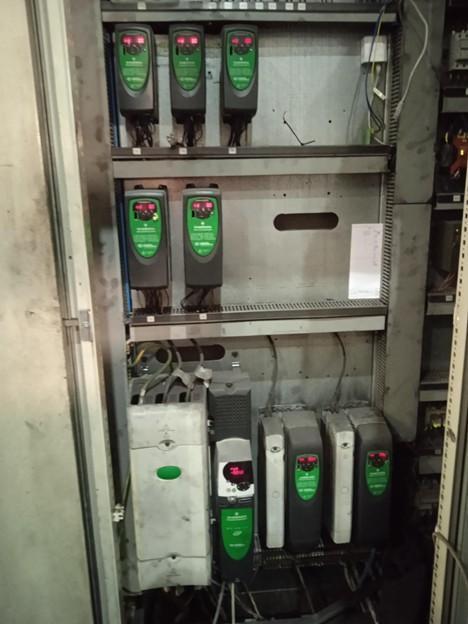

Emerson Digital Drives
Allen Bradley PLC
