1500mm x 5mm x 15,000 Kg Bronx Cut-To-Length Line with Flying Shear

Brand
BRONX

Model
Not Specified

Type
Cut To Length Lines

Stock #
605422A

Condition
Used

Year
1990

Request a Quote
Have one to sell?
Coil Weight 30000 pounds
Width 60 inches
Thickness 5 millimeters
ID 508 millimeters
Max OD 2000 millimeters

Equipped With

Thickness Range:  5.0mm - 1.0mm
Coil Width:  1500mm - 400mm
Coil Capacity:  15,000 Kg ( 35,000#)
Coil ID:  508mm - 610mm
Coil OD:  2000mm
Sheet Length:  4000mm - 500mm
Pack Weight:  5000 Kg
Pack Height:  750mm
Cuts Per Minute:  45
Max Line Speed:  50 Meters/Min
Yield Strength:  30 kg/mm2
Shear Strength:  38 kg/mm2

Complete Line With:

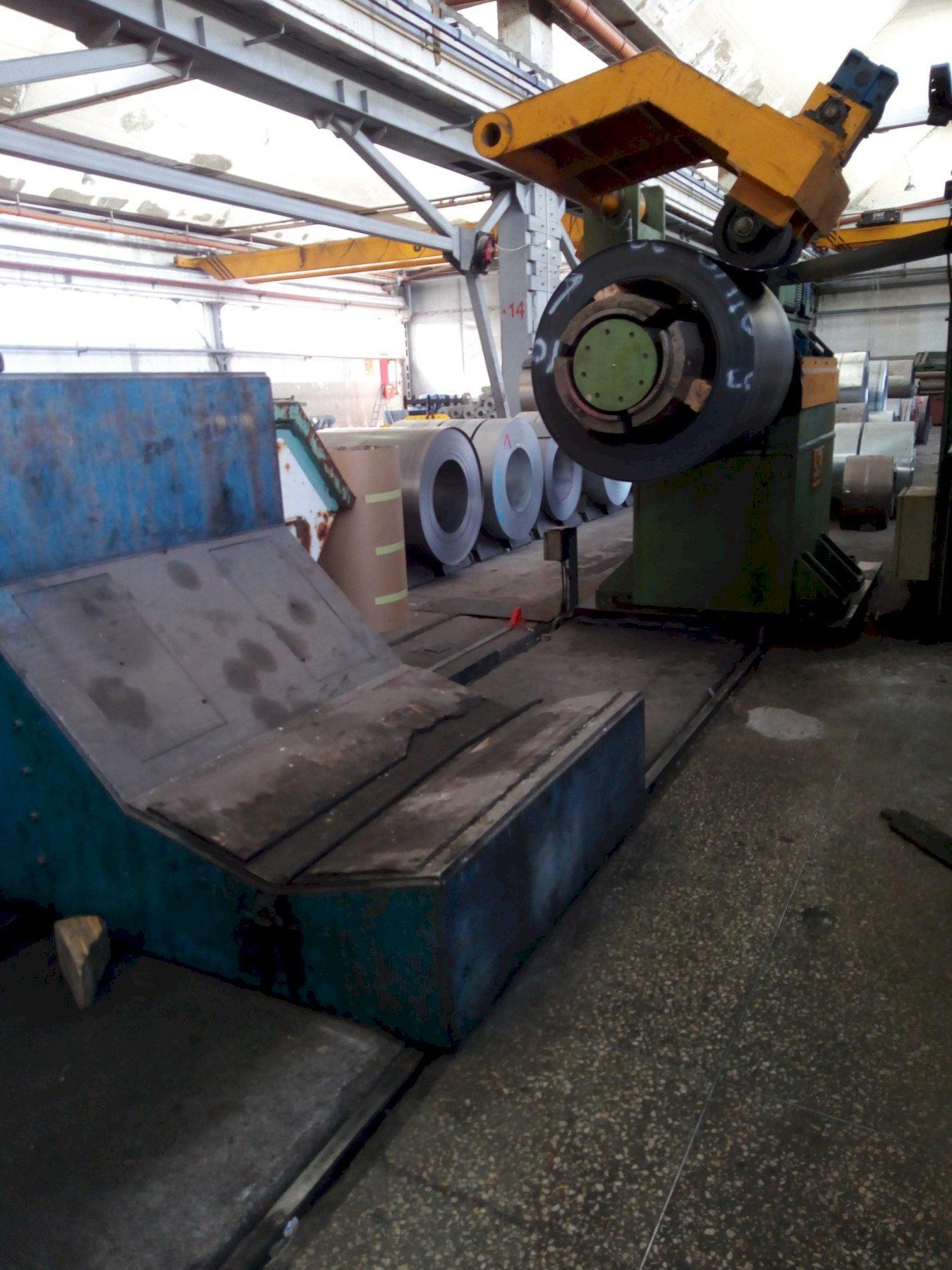

L-Type Floor Standing Coil Car
Mandrel Uncoiler
  Hold Down Roll
  4 Leaf Hydraulic Expansion
  Sliding Base
Peeler Table

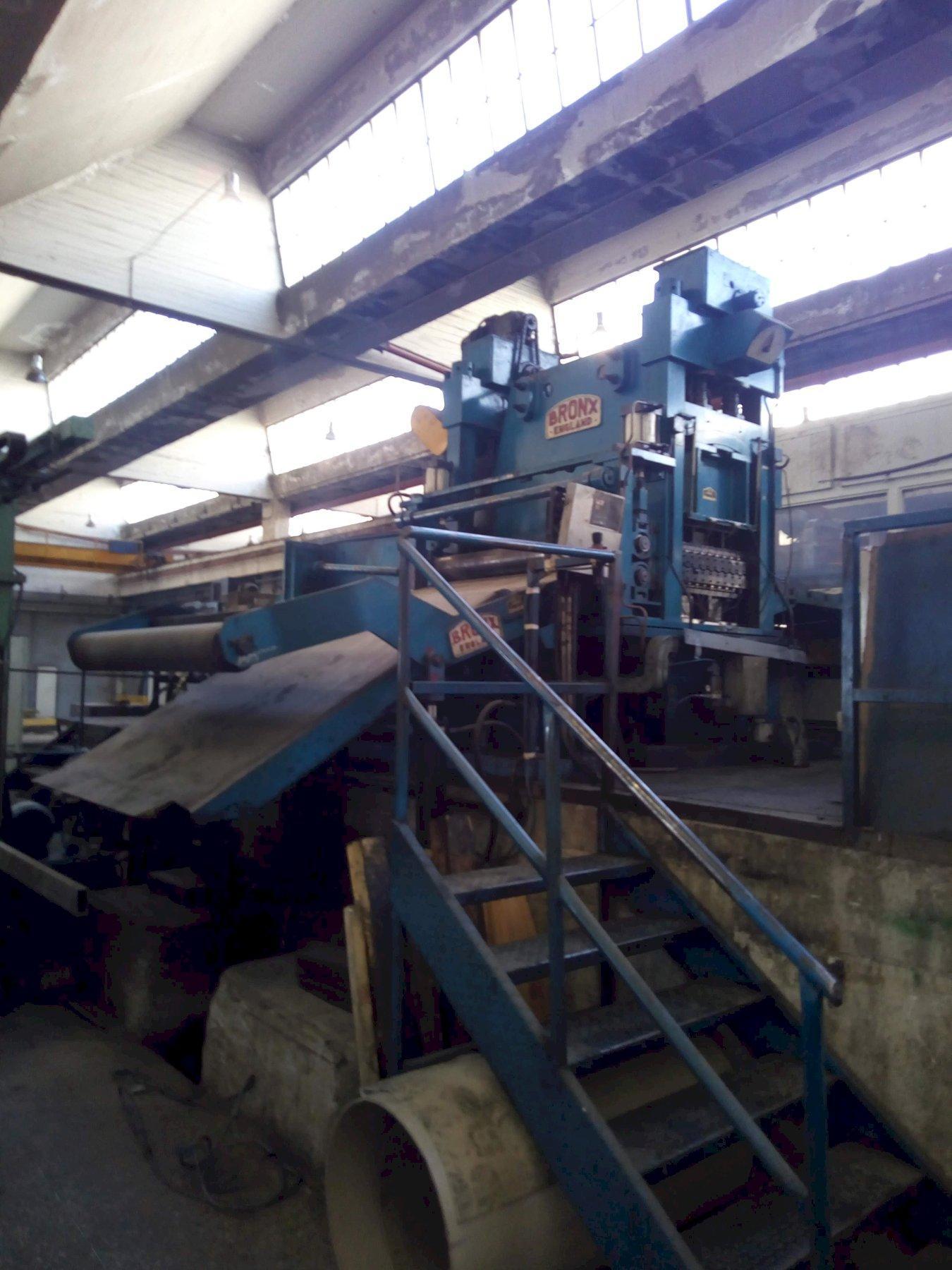

Bronx 17 Roll Precision Leveler
70mm Diameter Rolls
Pinch Rolls
Top & Bottom Back-Up Rolls
Front & Back Crown Beam

Gauging Table

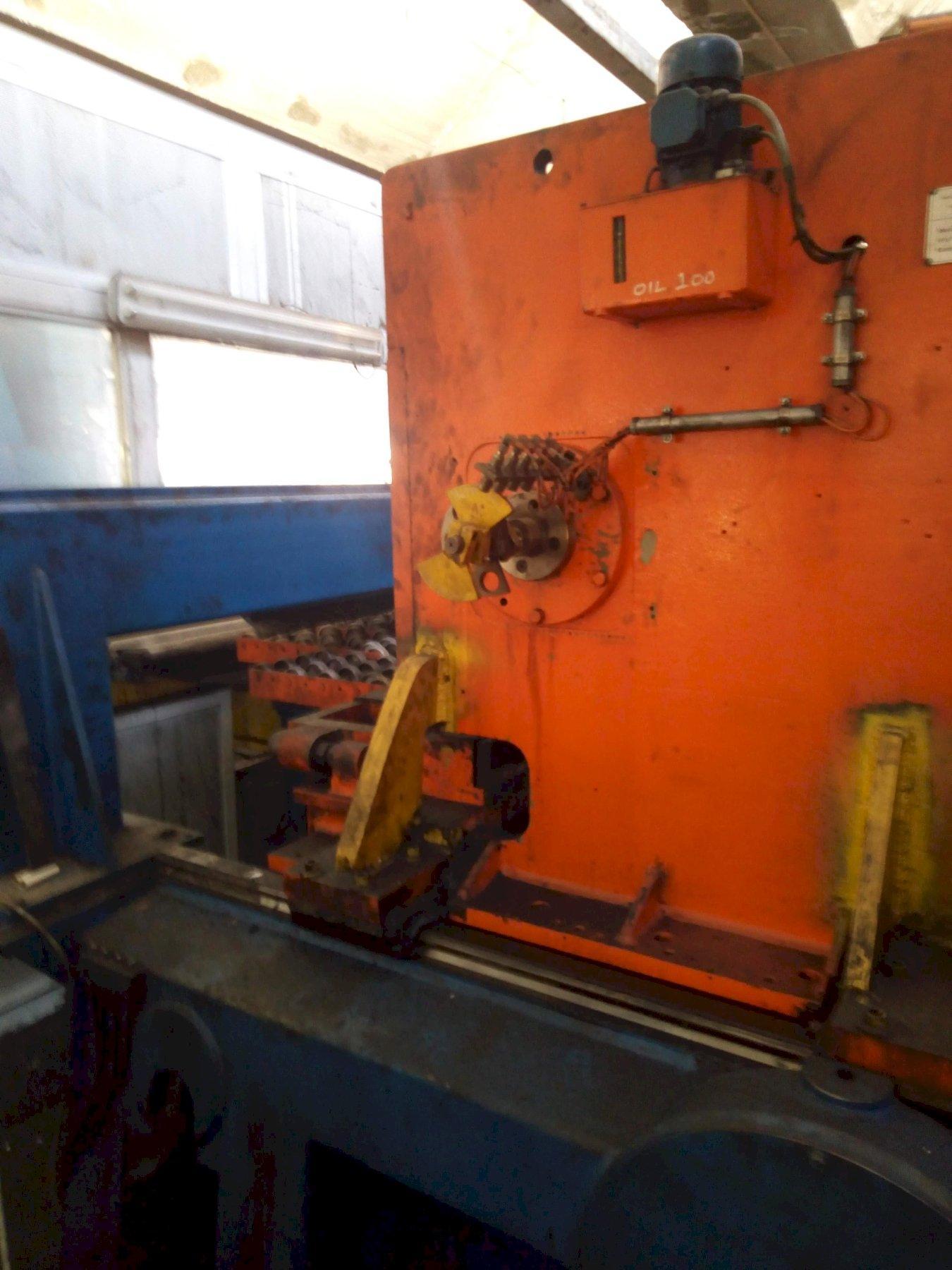

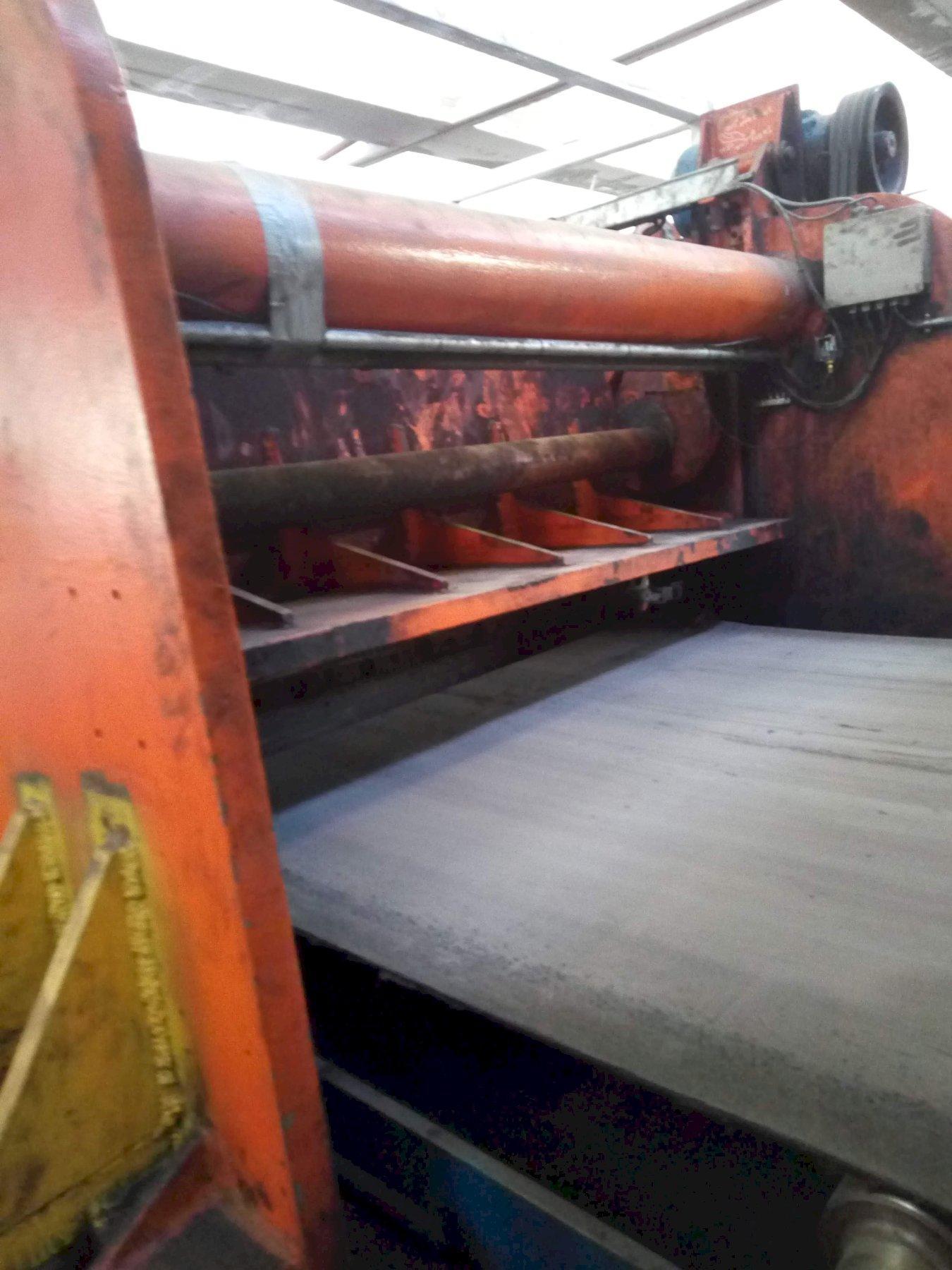

Mechanical Downcut Flying Shear

Stacker
Motorized Lift Table

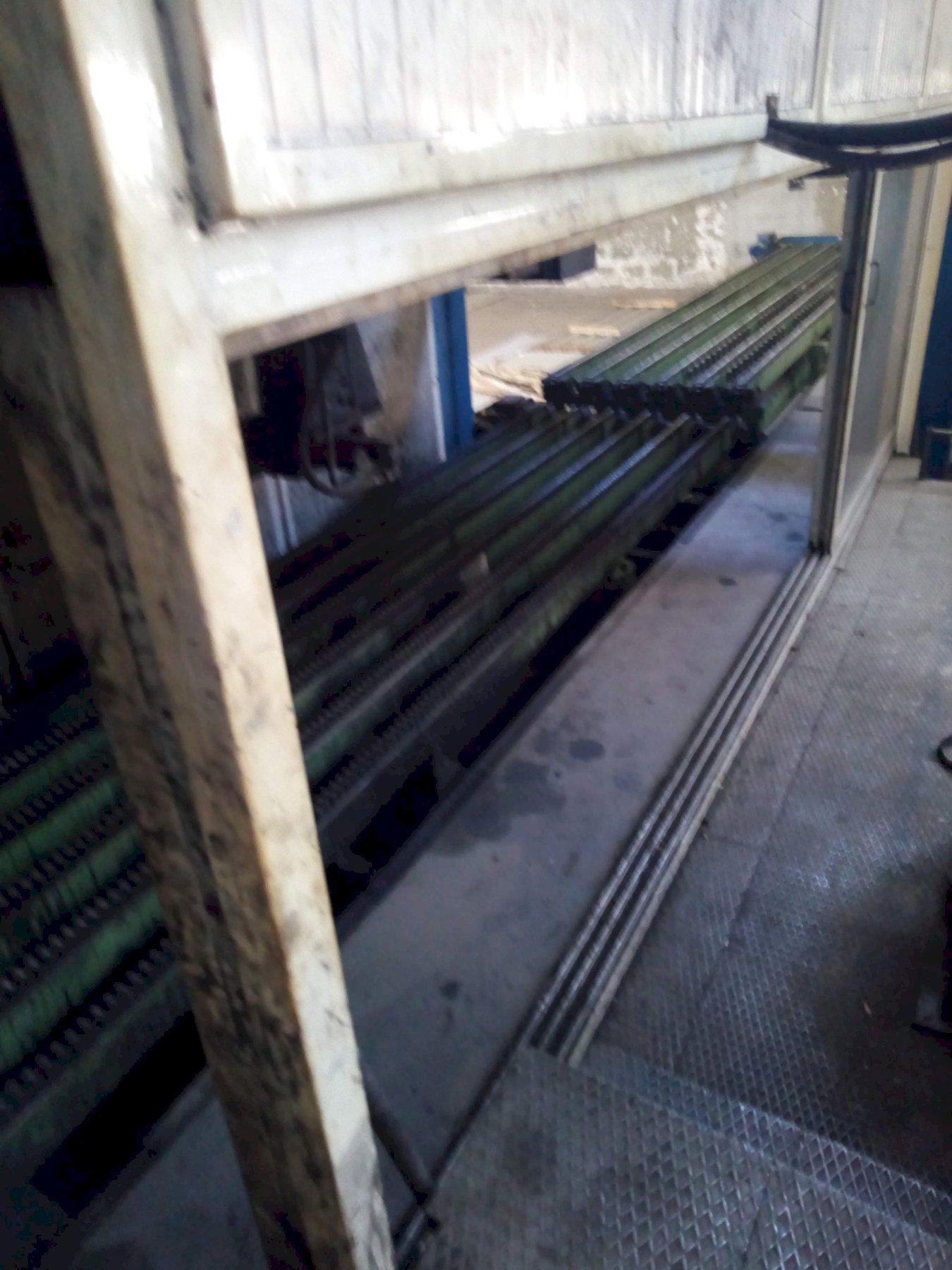

Exit Run Out Conveyor

Complete Line Can Be Inspected under Power
