1500mm (60") x 10mm (.394") x 25 Ton TACI Arrasate Cut to Length Line

Brand
FAGOR

Model
Not Specified

Type
Cut To Length Lines

Stock #
605160C

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 50000 pounds
Width 59.05 inches
Thickness .394 inches
ID 30 inches
Max OD 78.74 inches

Equipped With

Manufacturer: Fagor Arrasate

Material Specifications:

Max Coil Width: 1500 mm
Min Coil Width: 300 mm
Max Coil Weight: 25 Tm
Thickness Range: 1.5/10.0 mm

Finished Sheet Specifications:

Max Length: 12000 mm
Min Length: 500 mm
Max Line Speed: 25 meter/minute
Line Direction: Left to Right
Max Coil Weight: 25 Tm


Complete Line with the Following Components:

Pit Type Coil Car

Double Expandable Mandrel
Coil OD Range: max. 2000 mm min. 600 mm
Coil ID Range: max.760 mm min.508 mm
Powered Hold Down Roll

Entry Guide Rolls

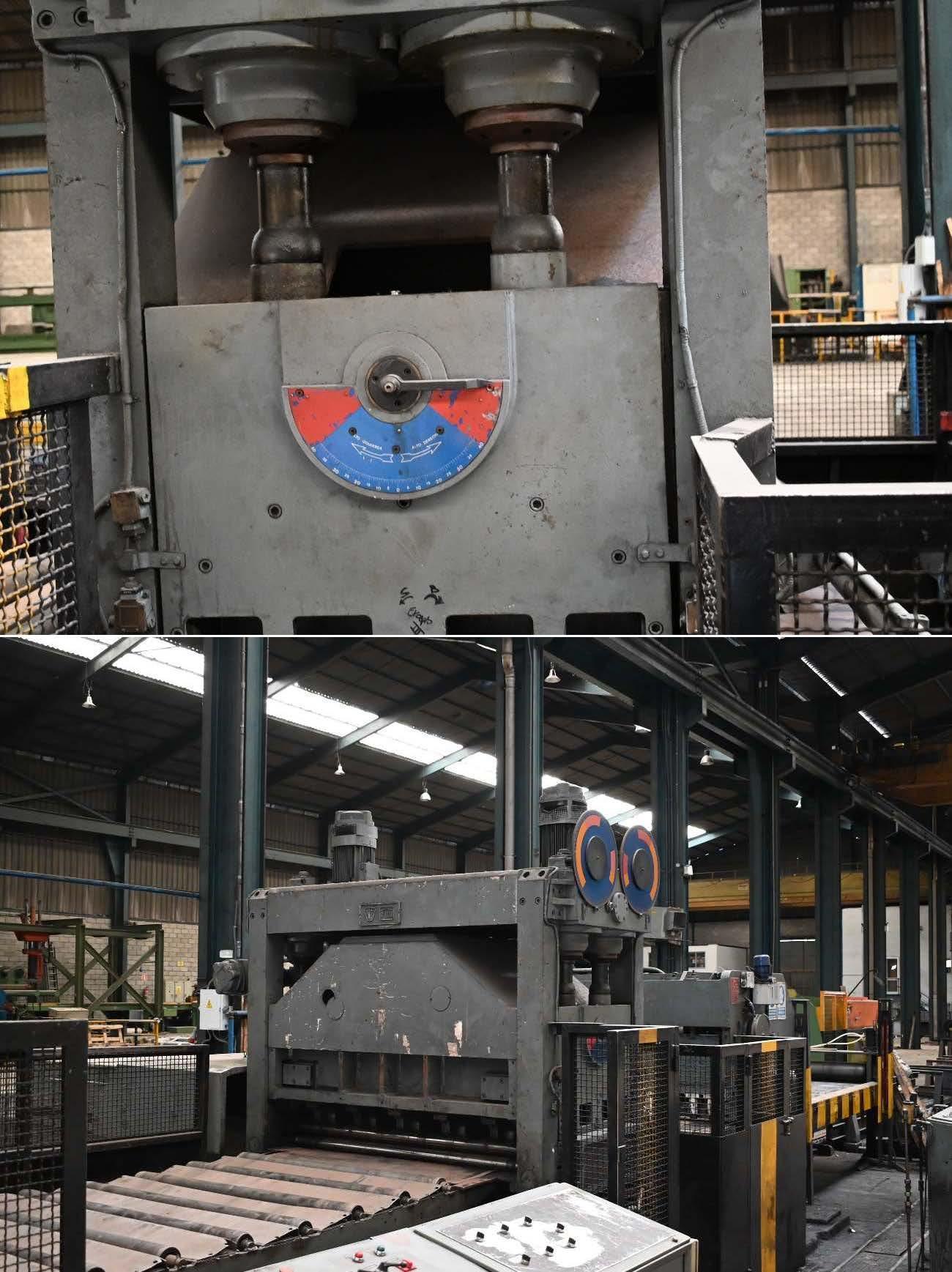

TACI Arrasate 4-HI Leveler
Hydraulic Actuation
5 Flights of Top and Bottom Motorized Back Ups

Pit Cross Over Table


Conveyor Table

Feeder Roll

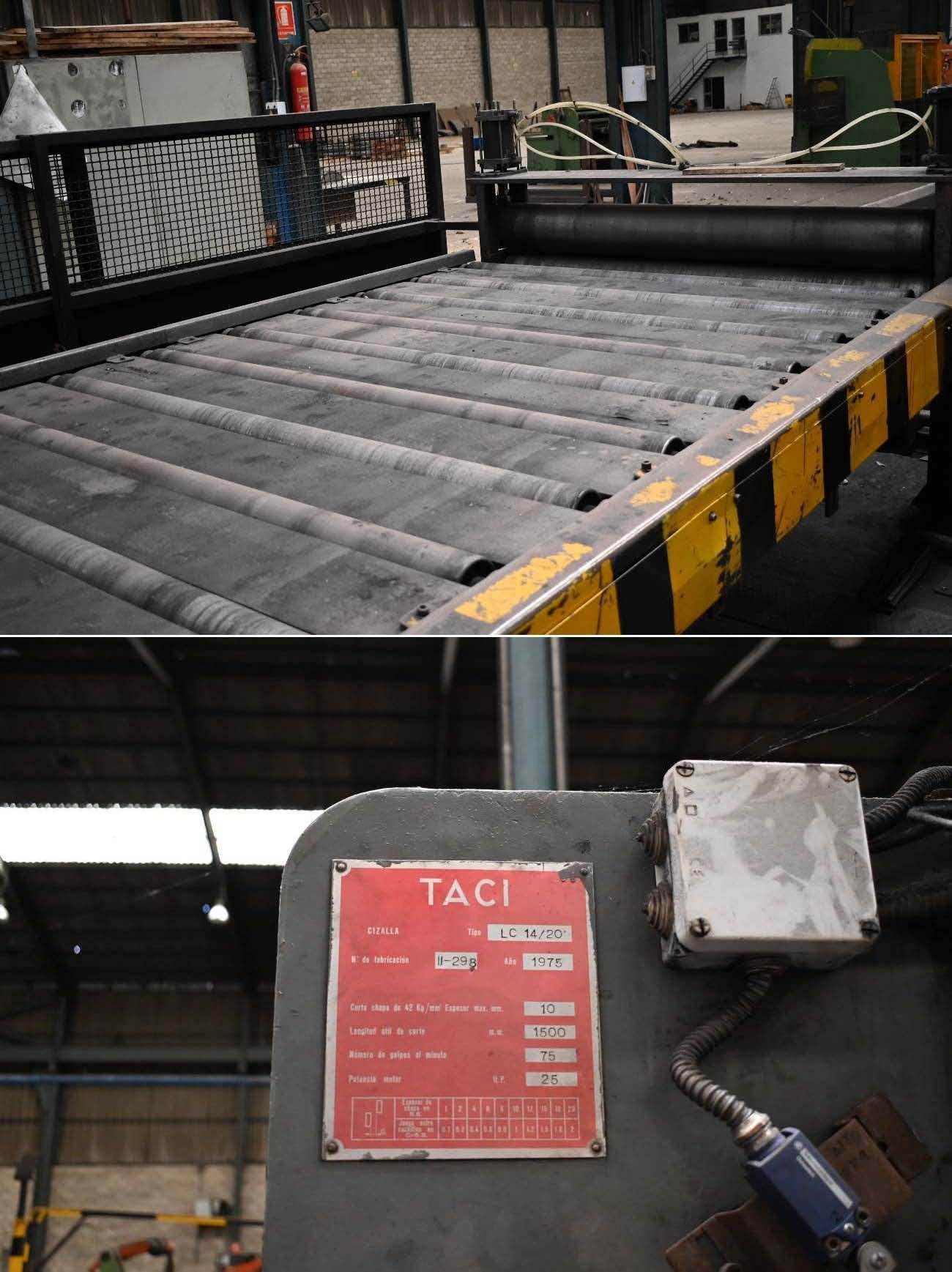

TACI Mechanical Shear

Drop Type Stacker

Motorized Run Out Table

Complete with Electrics, Hydraulics, Controls and Drawings
