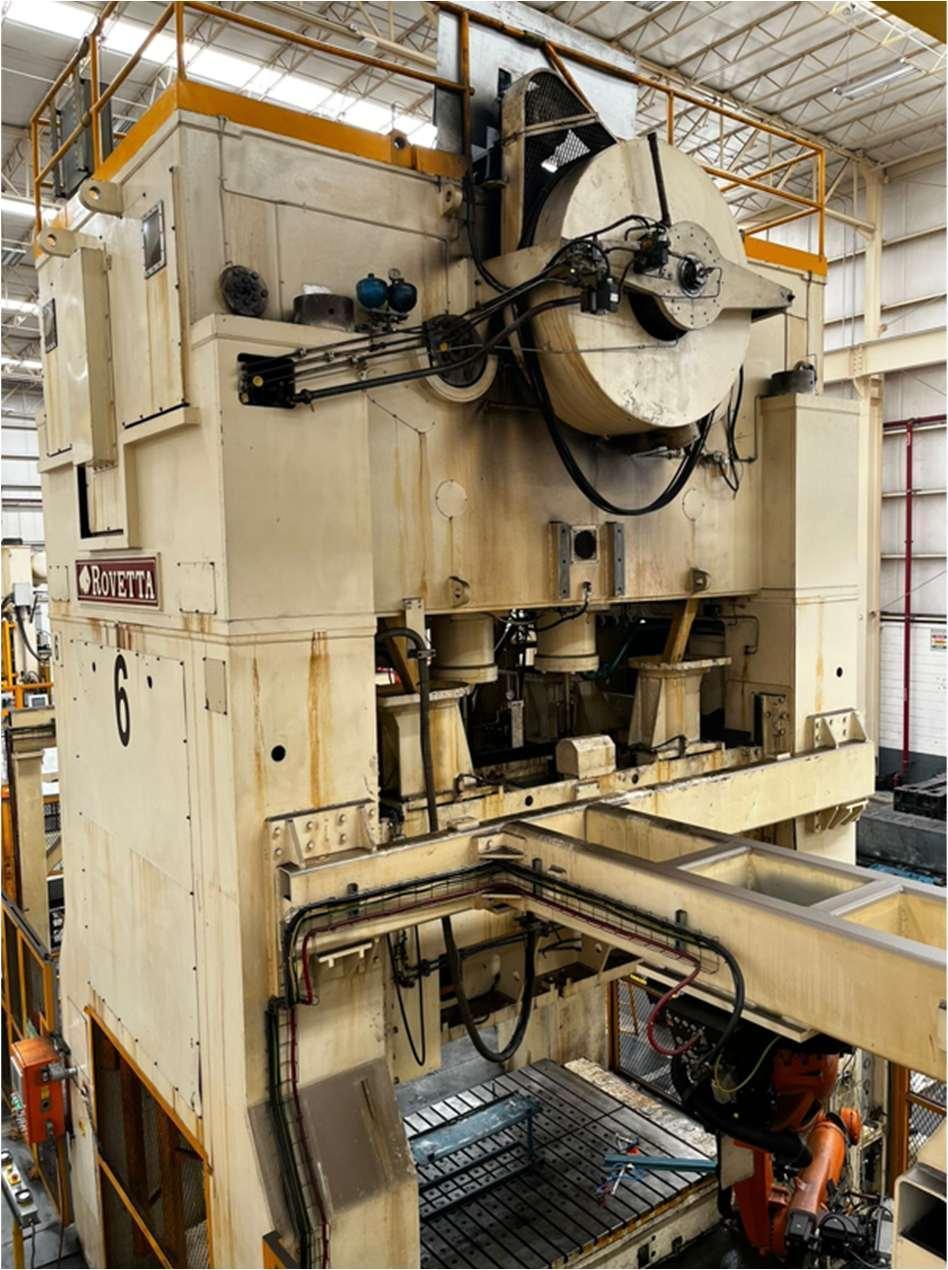

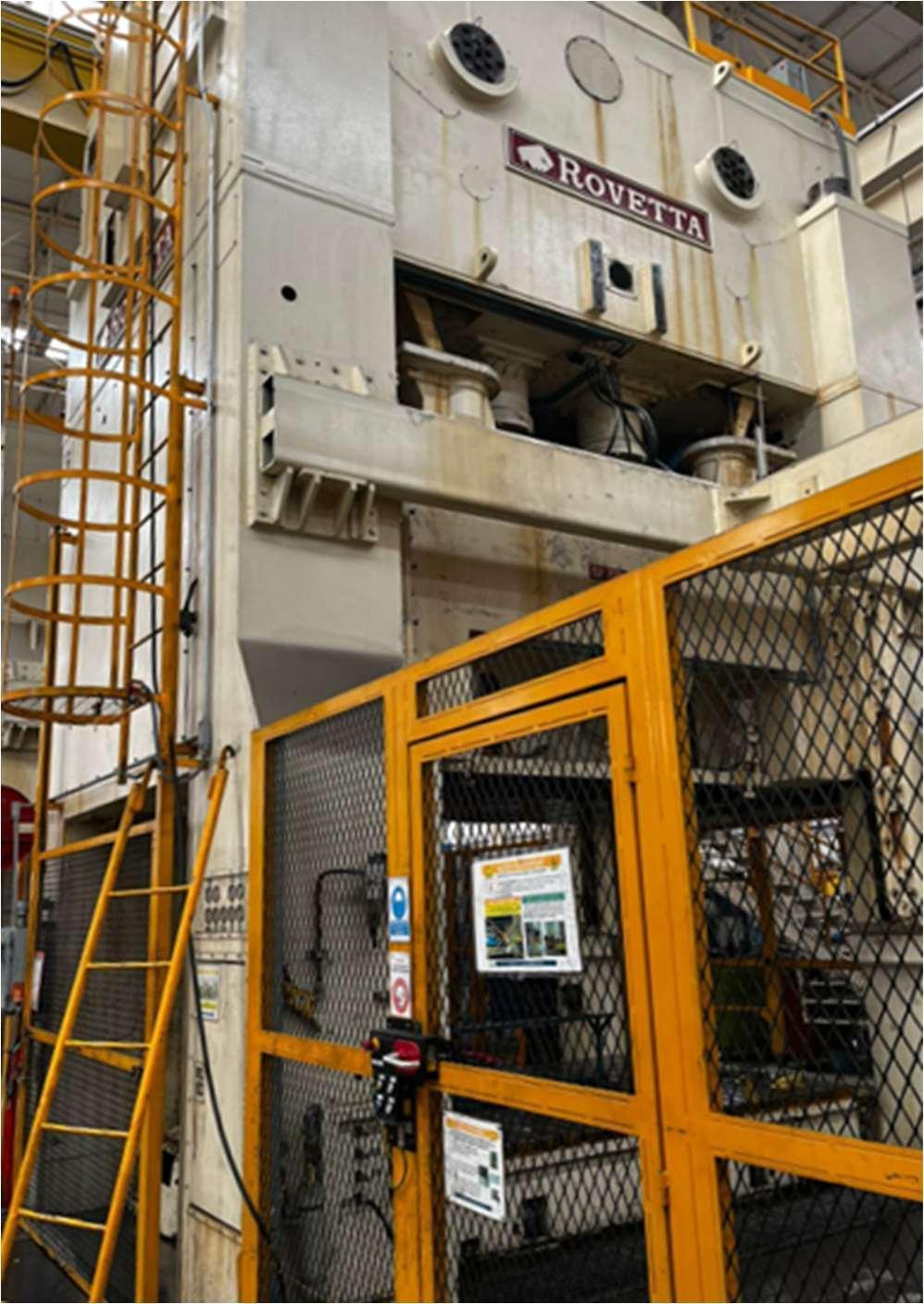

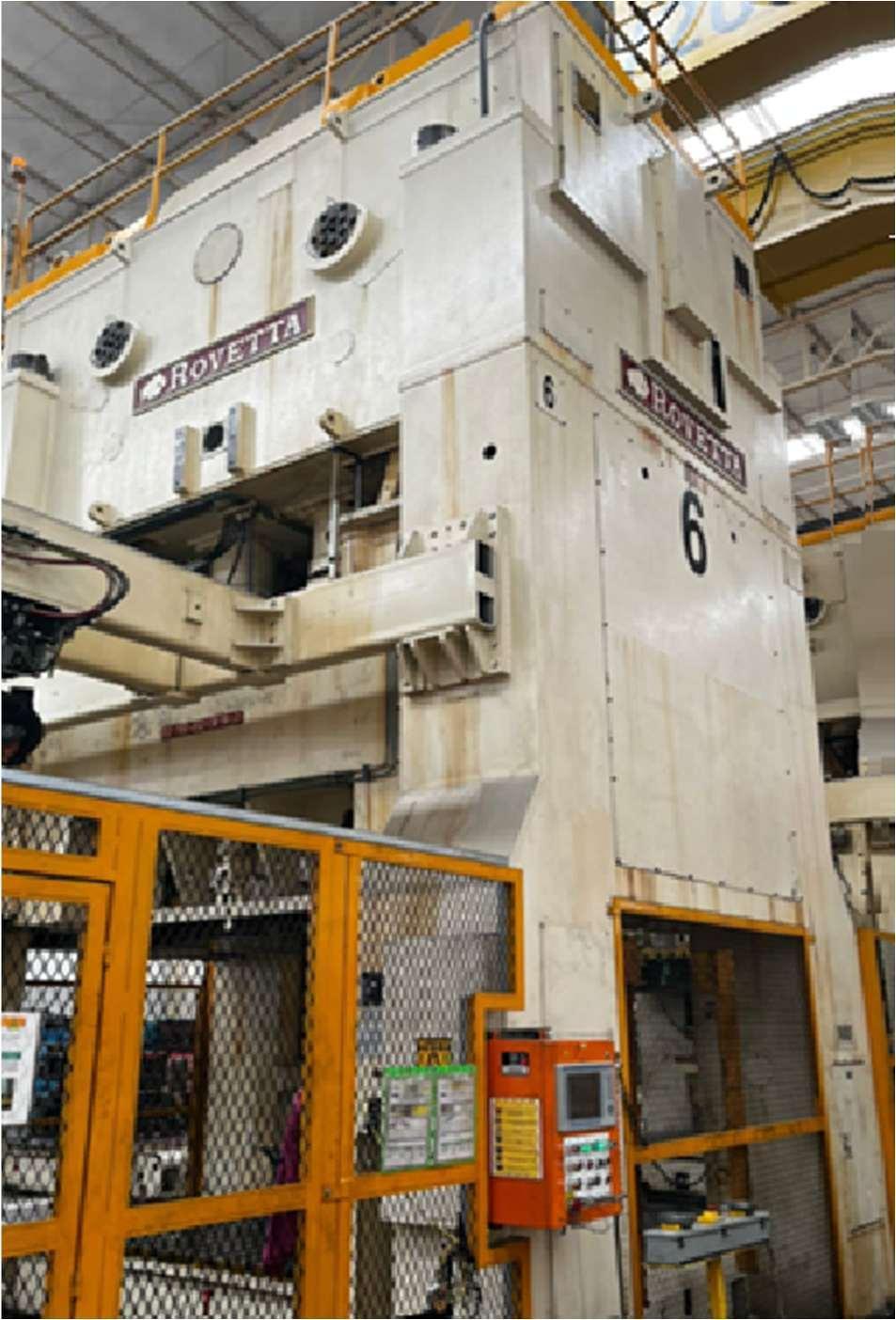

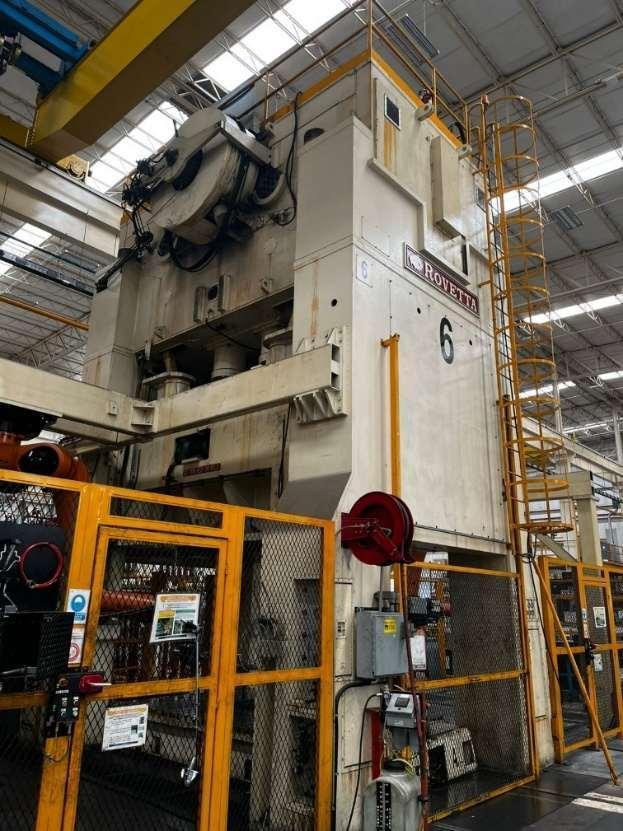

Model: D2-700-450-138-91/LD
Capacity / Tonnage: 700T @ 1/2 in ABDC Inner / 450T @ 1/4 in ABDC Outer
Bed Area (L-R x F-B): 138” x 91” (3505 x 2311 mm) Inner / 110” x 66” (2794 x 1676 mm) Outer
Stroke 38” (965 mm) Inner /27” (685 mm) Outer
Adjustment of Slide: 24” (609 mm) Inner and Outer
Shut Height over Bed (SDAU): 91” (3505 mm) Inner / 85” (2159 mm) Outer
Shut Height over Bolster (SDAU): 71” (1803 mm) Inner / 65” (1651 mm) Outer
Slide T-Slots: 72” (1828 mm)
Strokes per minute: 8 to 16 SPM
Capacity of Main Motor: 110 KW
Number of Cushions: 0 (original equipment had cushions, which are removed)
Scrap Through bolster
Height above floor: 29.45 ft (8976 mm)
Bolster Area (L-R x F-B): 138” x 91” (3505 x 2311 mm)
Number and Type of Bolster:
(2) Bi-Directional Rolling Bolsters
Through the window, then T-track movement
20” thickness / height
Top plate: T-slotted (1-inch slots)
Bolster clamps to fix the bolster to the press base
Approx weight (with 1 slide and 1 rolling bolster): 450,000 kg
Equipped with:
Standard press controls
Press control package with inch, single and continuous cycle run modes, emergency stop and
palm-button circuits
Colour touchscreen
(1) palm-button stand
(4) plugs for palm-button stand
(8) outlets for external automation
Automation control at the operator’s panel
Semi-automatic counterbalance control at the operator’s panel programmable by recipe
Lubrication control at the operator’s panel
Tonnage monitor
Die Lights
(2) Ram blocks
