1000mm x 3.0mm Aluminum Perforating / Embossing Line for Coil to Coil & CTL

1000mm x 3.0mm Aluminum Perforating / Embossing Line for Coil to Coil & CTL

Brand
TIMKO

Model
Not Specified

Type
Presses, Perforating

Stock #
605616

Condition
Used

Year
2019

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Dimensions	1000
Weight	5 tons

Equipped With

Year 2019
Material: Aluminum & Alloys

Coil to Coil & Cut-To-Length Line
Thickness: 3.0mm - .4mm
Coil Width: 1000mm - 400mm
Coil Capacity: 5 Tons
Coil ID: 508mm
Coil OD: 1600

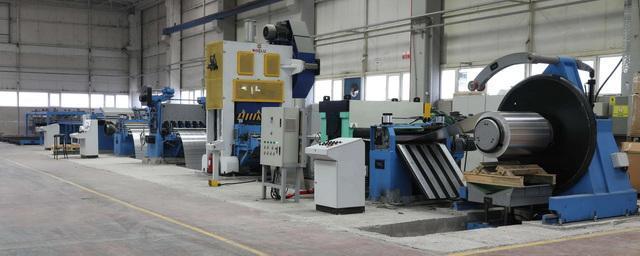

Complete Line With:

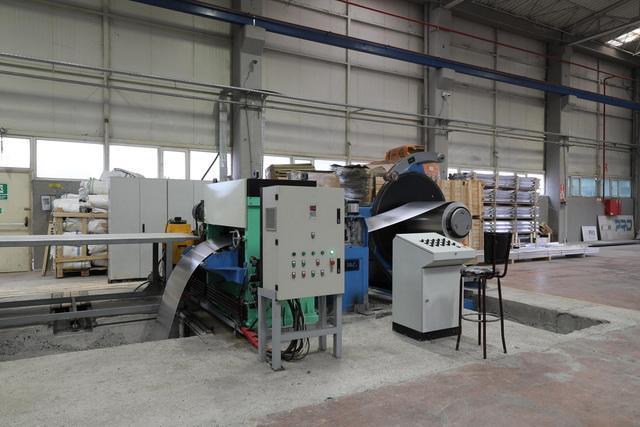

Coil Car
Mandrel Uncoiler
Edge Control Unit
Peeler / Pinch Roll
Flattener

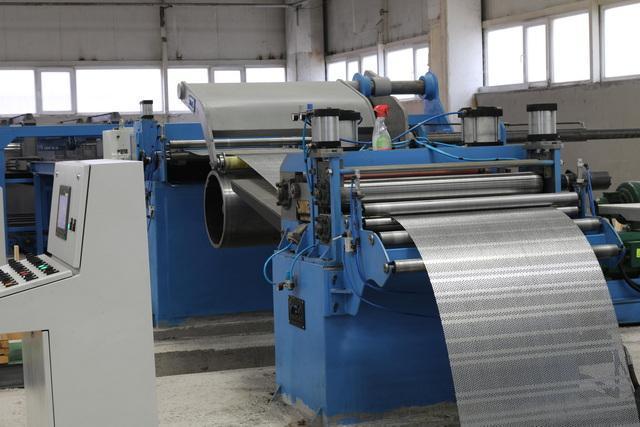

Embossing Stand
Double Sided
Stucco Pattern Embossing Rolls
480mm Dia Rolls x 1400mm Roll Face

Looping Pit Cascade Rolls

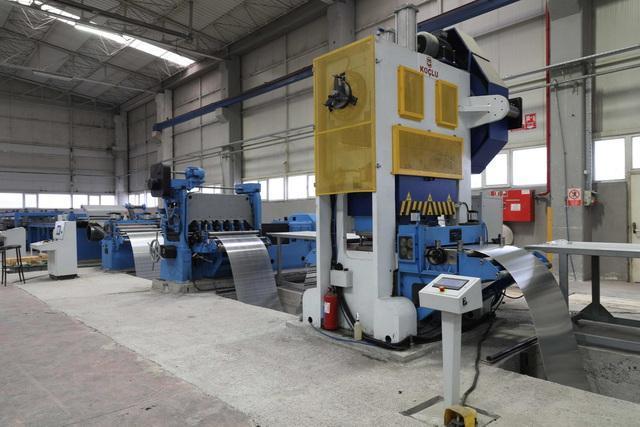

200 Ton Perforating Press
SPM: 100 - 250
Stroke: 30mm
Bed Area: 900mm x 1450mm
Eccentric Press

Looping Pit Cascade Rolls
Backed-Up Precision Leveler
Tension Unit with Polyurethane Coated Rolls

5 Ton Recoiler
508mm Diameter Drum
Variable Tension Control
Exit Coil Car

Roll Feed Sheet Measuring Unit

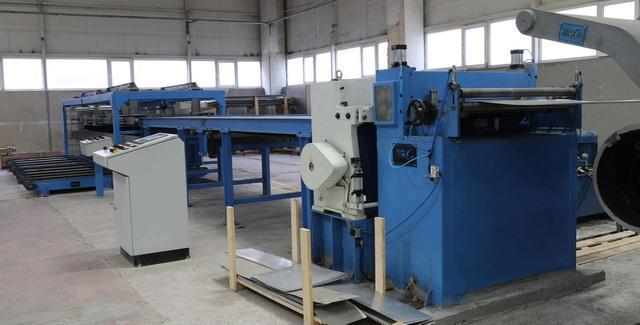

High Speed Shear
SPM: 30

Run Out Belt Type Gauging Table

Stacker Table with Side Discharge
Motorized Lift Table
Sheet Length: 3000mm - 6000mm
Pallet Height: 400mm
Side Discharge Conveyor

Operator Push Button Stations
Digital Drives with PLC Controls

Complete Line
