| Width | 72 inches |
| Coil Weight | 10000 pounds |
Coil O.D.: 72"
Coil Width: 22" Max.
Coil I.D. Min. 16"
Coil Weight Capacity: 10,000 Lbs. Downlayer and Banding Table
15,000 Lbs. Conveyor
Consisting of the following:
-Downlayer:
10,000 Lb. Capacity
Inline Discharge
4" Dia. x 75" face Rolls
Hydraulic actuated horn and tilt
Driven Conveyor
Horn 5" wide x 9.5" tall x 13" long
62.75" from floor to top of the Horn in raised position
34" Passline Height
Overall Size: 108" L x 96" W x 36" High

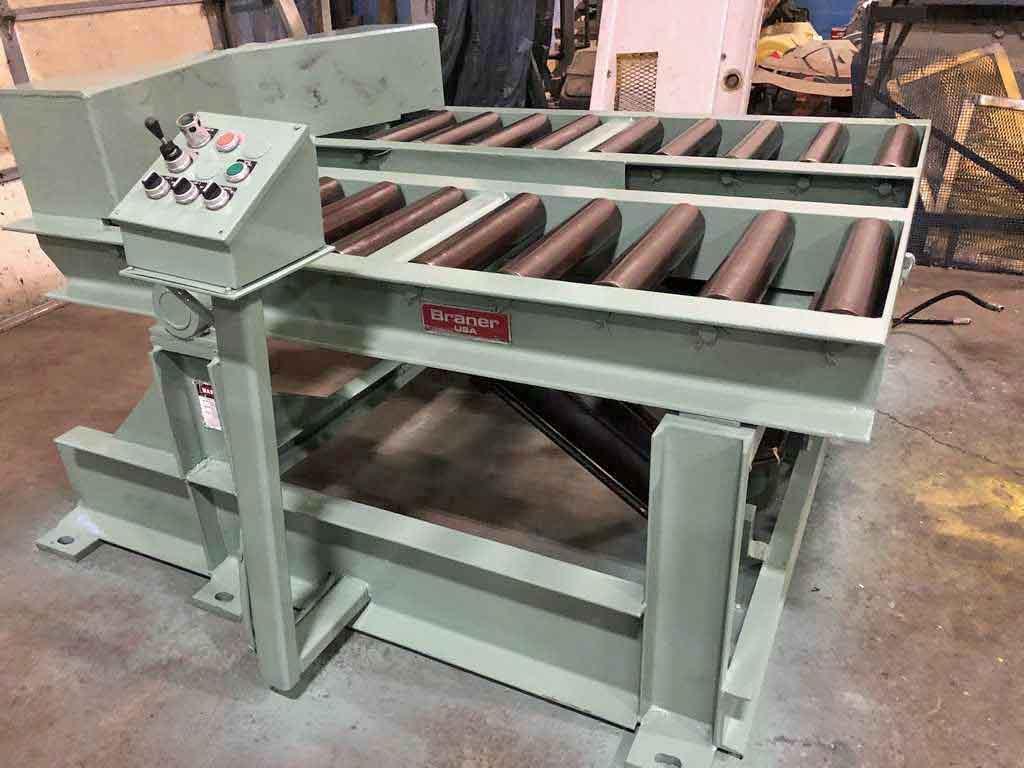

-Manual Banding Table: AMCA
10,000# x 72" O.D. Capacity
94" Face x 3.5" Dia. Powered Conveyor Rolls
Driven by AC Motor thru Reducer
3 Conical Rolls for Coil Rotation
Each Roll individually driven by 0.75 KW AC Motor thru Reducer
(4) - 6" Dia. Camrolls for centering
Hydraulic Motor adjustable
Less Banding Head
Passline Height: 33"
Overall Size: 123.5" L x 100" W x 36" High
12,000 lbs.

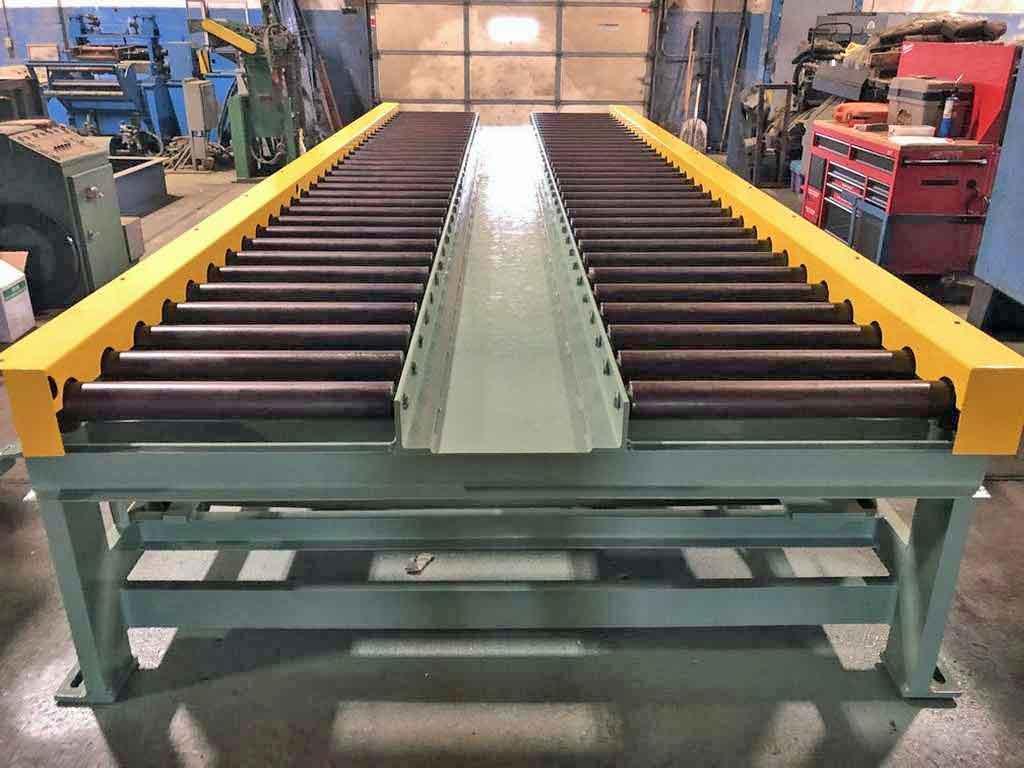

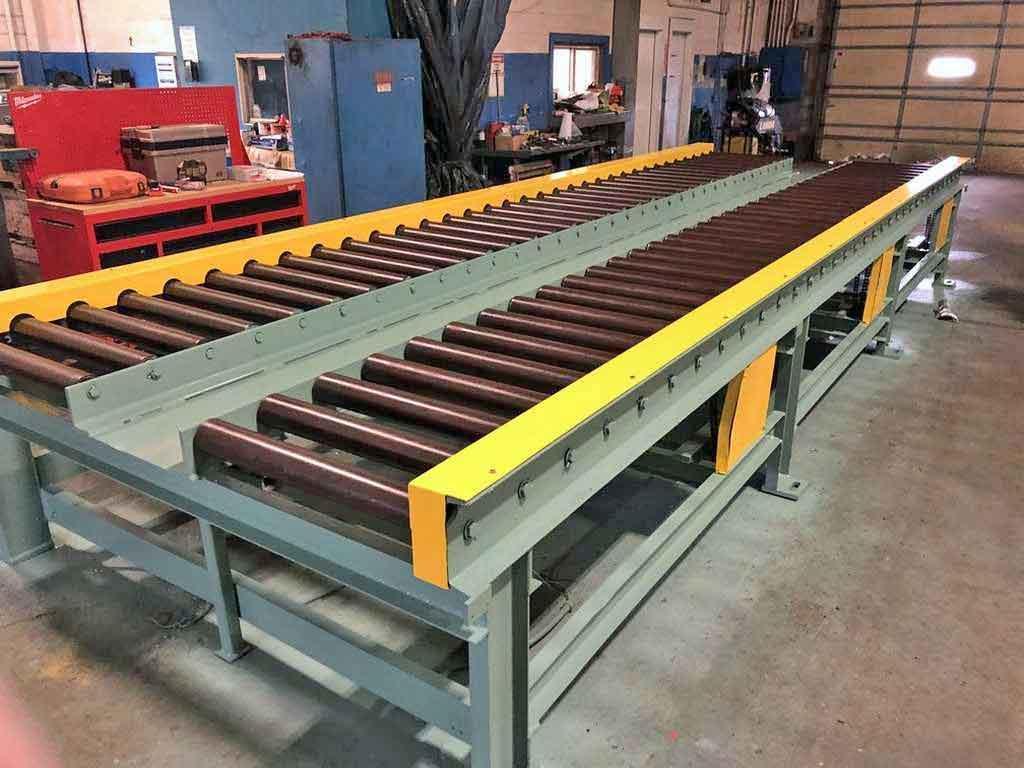

-Split Conveyor Section: (Sold)
15,000 Lb. Capacity
21 Ft. Long
4" Dia. x 28" Face Driven Rolls on both sides
19" Split section down the center
(3) - 1.5 HP AC Gearmotor Drives, 1725 RPM, 230/460 V
36" Passline Height
Overall Size: 252" L x 93" W x 36" High

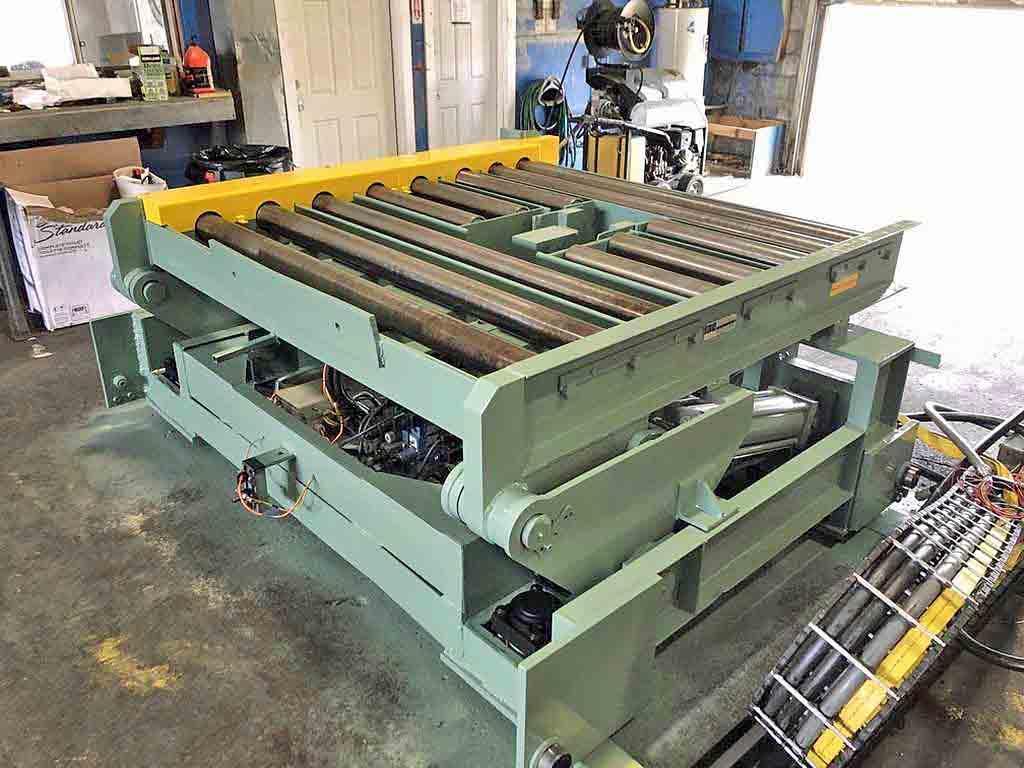

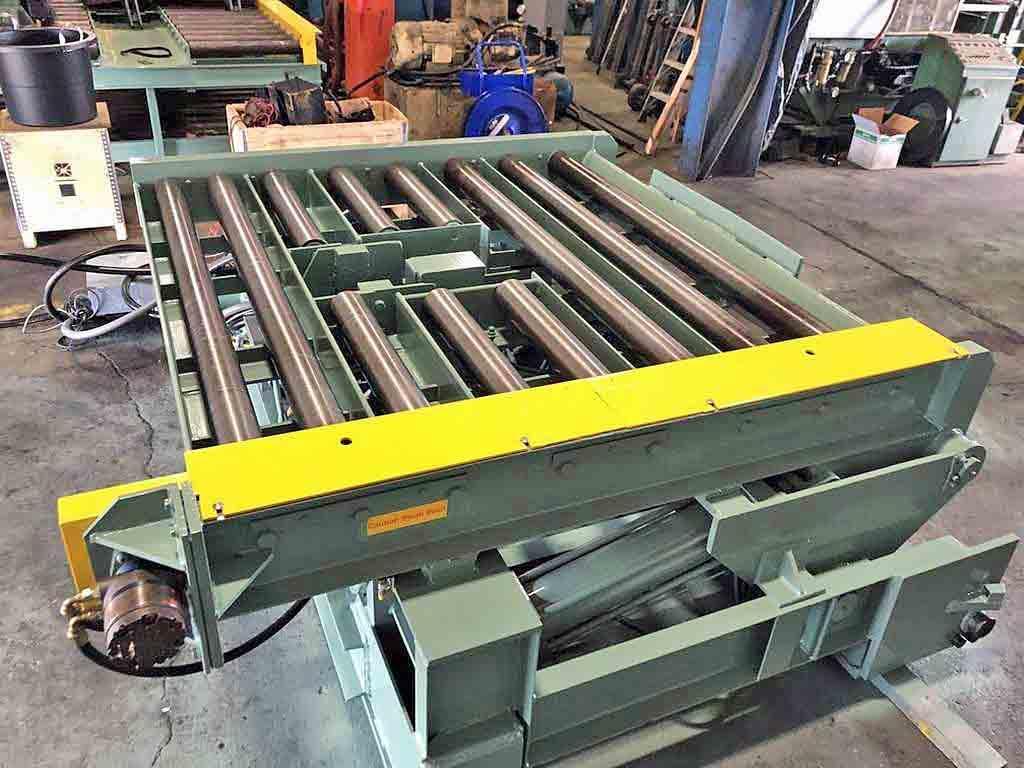

-Exit Split Conveyor/Coil Tipper:
S/N: PO 6734
15,000 Lb. Capacity
4" Dia. x 18" Face Rolls
11" Split section down the center
(2) - 5" Bore x 20" Stroke Hyd. Tilt Cylinders
11" High "V" Cradle Coil Support
36" Passline Height
Overall Size: 91" L x 79" W x 48" High
-Monorail System:
15,000 Lb. Capacity
30' L Monorail Travel

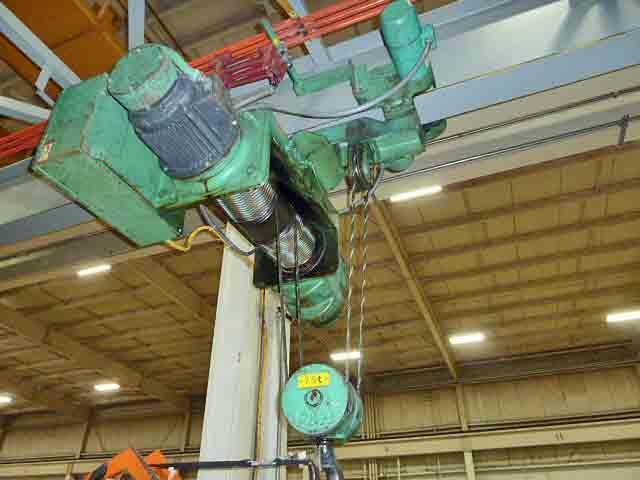

7.5 Ton P & H Crane
-Operators Station:
-Electrical Panel for Downlayer:
Avon Engineering
