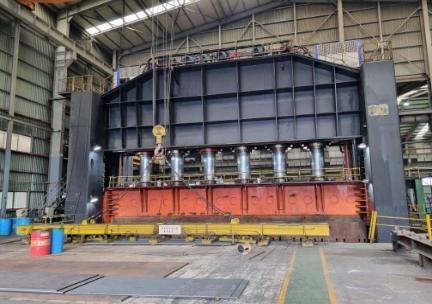

10,000 Ton Refurbished JCO Forming Press Machine

Brand
JCO

Model
Not Specified

Type
Presses, Forming

Stock #
605613

Condition
Used

Year
2010

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Equipped With

General Specifications:
Pipe Size: Ø406.4mm ~ Ø1,625.6mm
Pipe Wall Thickness: 9.0(t)m x 60.0(t)mm
Pipe Length: Min.8.0m ~12.0m / 16.0m
Pipe Machine Capacity: 80,000 Ton / Year

- Strip material :
- Mild steel, Q355, Q235B, A.B X60 grade
- Strip width : Min 1,250mm ~ Max. 5,200mm
- Strip thickness : Min 9.0(t)mm ~ Max 60.0(t)mm
- Strip length : Max 12,200mm(-0/+50mm) Max. 16,000mm
- Strip weight : Max 30,000kgs
