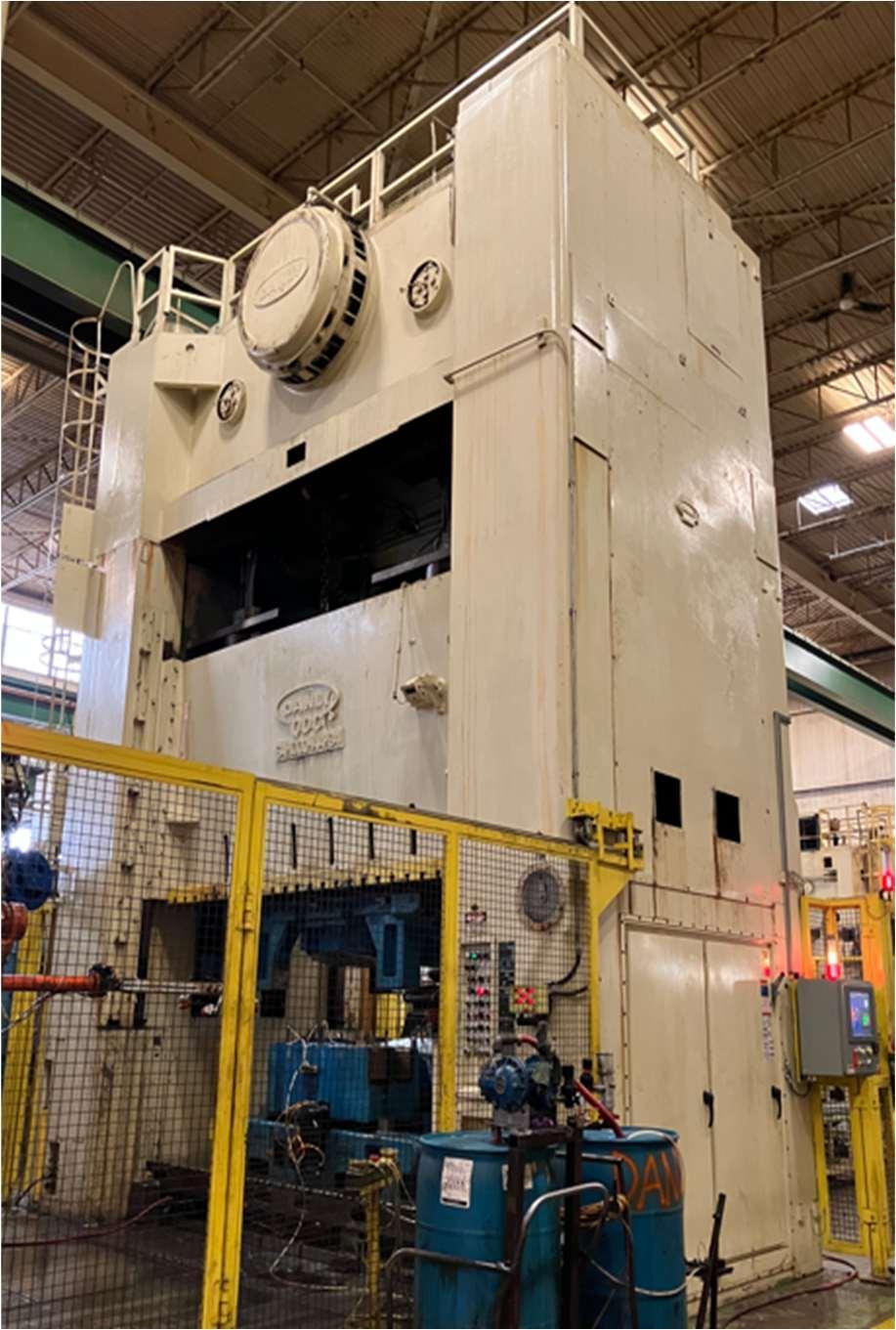

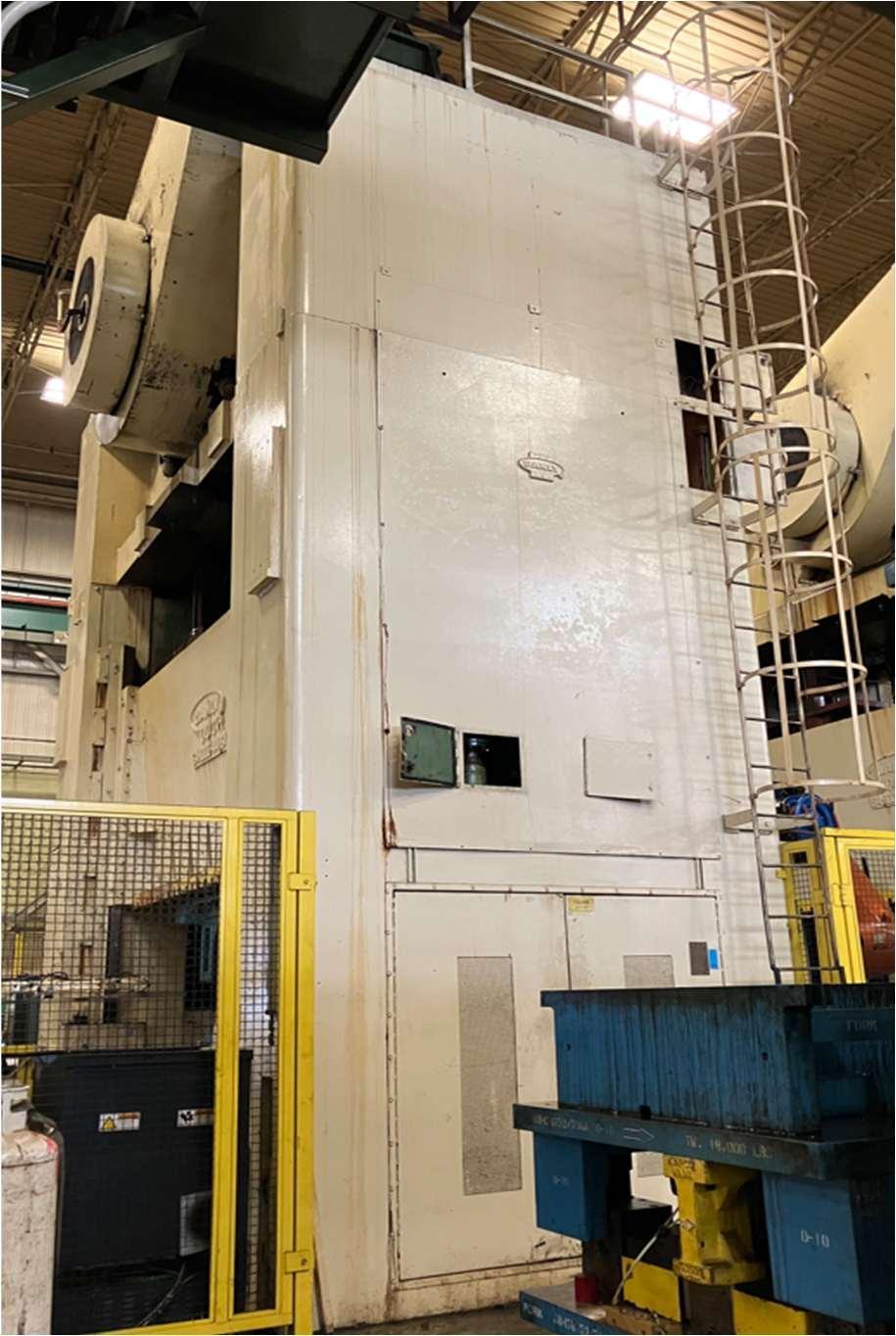

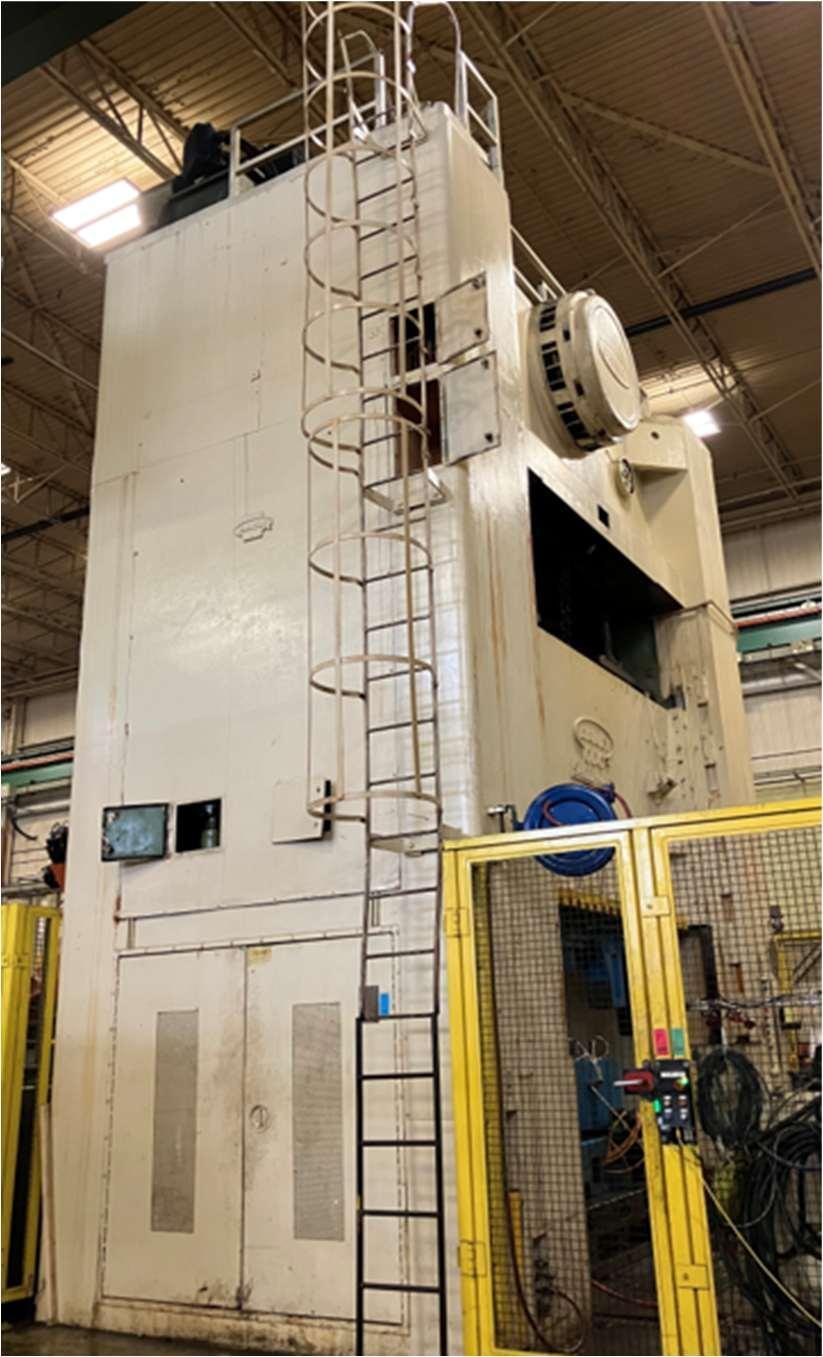

Model: S4-1000-144-84
Built Year: 1969
Capacity / Tonnage: 1000T @ 1/2 in ABDC
Slide Area (L-R x F-B): 144” x 84” (3657 x 2133 mm)
Slide Plate: 6” distant T-slotted
Stroke: 33” (838 mm)
Slide Adjustment: 30” (762 mm)
Shut Height over Bolster (SDAU): 72” (1828 mm)
Strokes per minute: (through Dual Speed Clutch) 18 to 22 SPM
Capacity of Main Motor: 200 HP 1200 RPM
Number of Cushions: 0 (original equipment had cushions, which are removed)
Press overall size:
Press width at the base feet: 235” x 148” (5969 x 3759 mm) 186” (4724 mm)
(no side openings in the columns)
Press overall height: 40 ft (12192 mm)
Height above floor: 30.5 ft (9296 mm)
Bolster Area (L-R x F-B): 144” x 84” (3657 x 2133 mm)
Number and Type of Bolster:
(1) Uni-Directional Rolling Bolster
Front-Back movement
17” (432 mm) thickness / height
Top plate: 6” distant T-slotted
Equipped with:

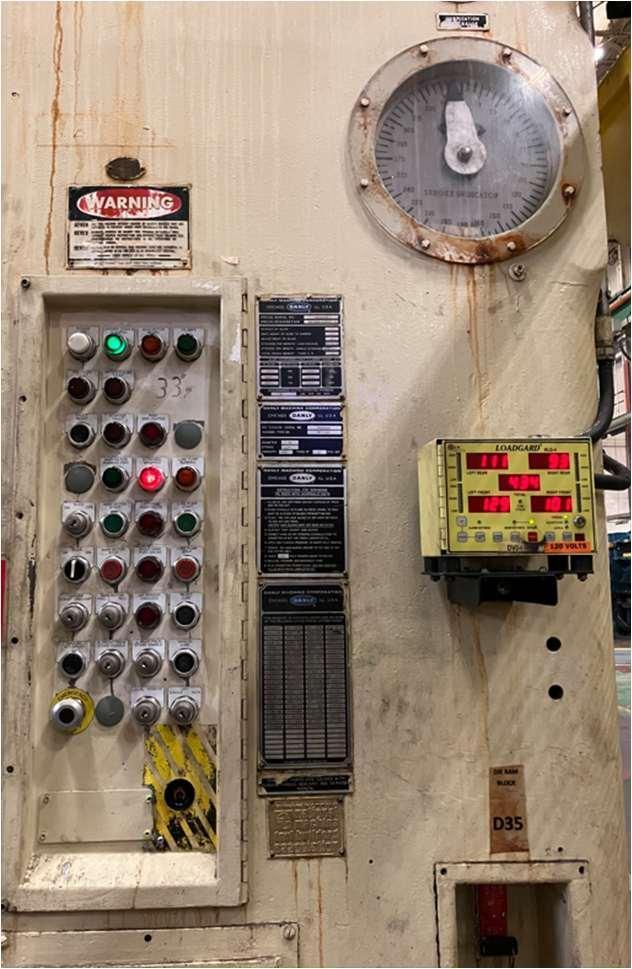

Operator’s controls panel at the press column
Palm-button stand
Illuminated shut height indicator
Stroke indicator
Standard Press safety stop-buttons
Safety blocks
