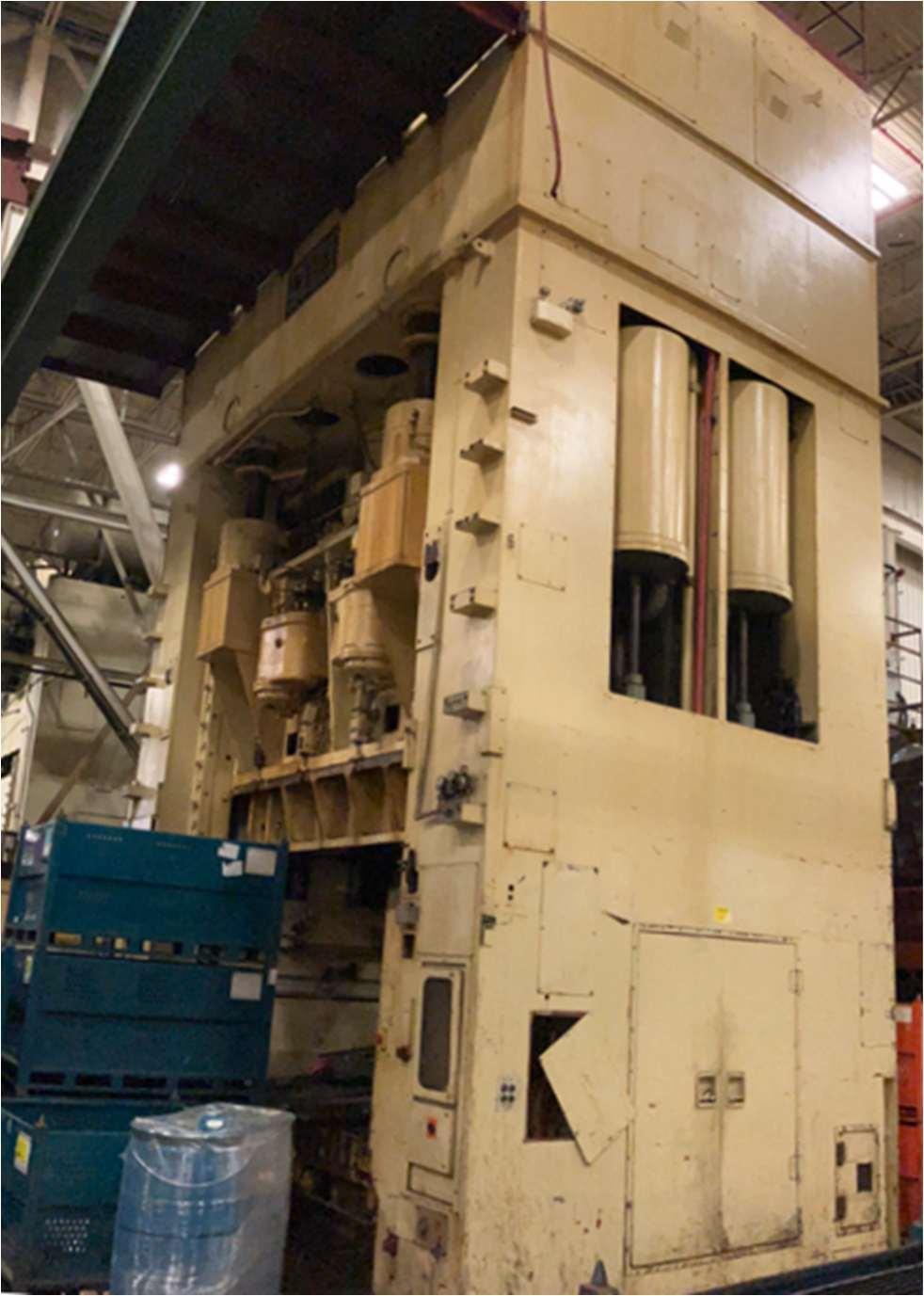

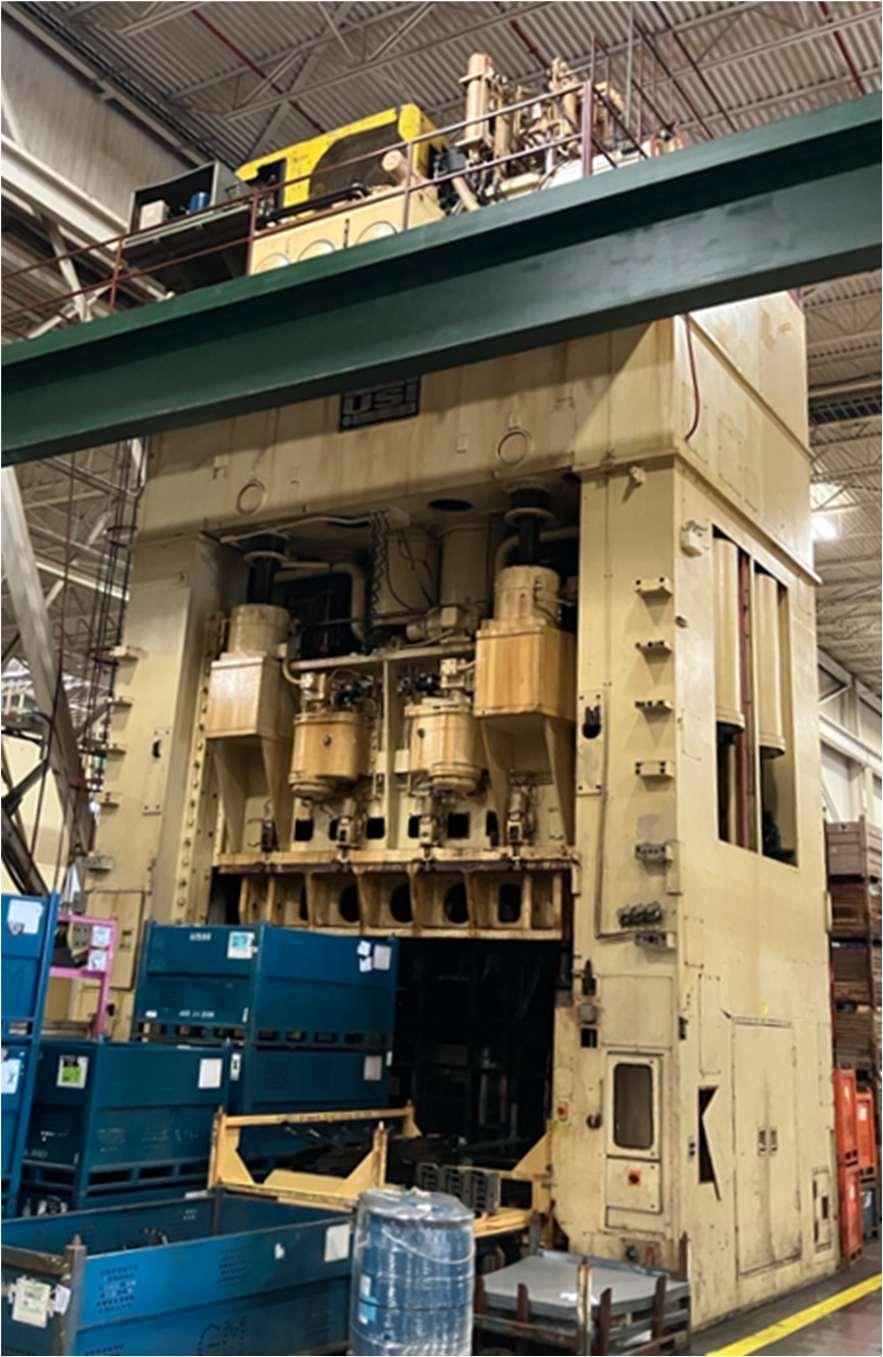

2500 Ton USI-Clearing Double Action Press

2500 Ton USI-Clearing Double Action Press

Brand
Not Specified

Model
Not Specified

Type
Presses, Straight Side

Stock #
605479

Condition
Used

Year

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Equipped With

Model: D4-1600-900-156-102
Built Year: 1964
Capacity / Tonnage: 1600T @ 1/2 in ABDC Inner / 900T @ 1/4 in ABDC Outer
Slide Area (L-R x F-B): 138” x 84” (3505 x 2133 mm) Inner / 156” x 102” (3962 x 2591 mm) Outer
Inner Slide: 6” distant T-slotted
Stroke: 44” (1117 mm) Inner / 33” (838 mm) Outer
Slide Adjustment (by Motor): 24” (609 mm) Inner and Outer
Shut Height over Bolster (SDAU): 108” (2743 mm) Inner / 98” (2489 mm) Outer
Strokes per minute (through Dual Speed Clutch): 7.5 low speed and 15 high speed
Capacity of Main Motor: 300 HP 1200 RPM
Number of Cushions: 0
Press overall size (no side openings in the columns): 244” x 122” (6197 x 3099 mm)
Press overall height: 48 ft (14630 mm)
Height above floor: 37.5 ft (11430 mm)
Bolster Area (L-R x F-B): 156” x 102” (3962 x 2591 mm)

Number and Type of Bolster:
(1) Uni-Directional Rolling Bolster
Front-Back movement
19” (482 mm) thickness / height
Top plate: 6” distant T-slotted

Equipped with:
Operator’s controls panel at the press column
Run button arms at front and back of the press Illuminated shut height indicator for inner and outer slides
Digital stroke indicator and control
Die clamps
Die lights
Standard press safety stop-buttons
Safety blocks for inner and outer slides
